These 20 ton capacity models are used for connecting river barges, pulling forms and steel plates together and other applications in bridge construction and concrete and steel engineering projects. Units are equipped with spring activated pawls and 26” long attached handles. The handle effort per ton is 16 lbs. The I.D. of the eye is 1 5/16”. Depth of eye is 1 7/8”.
Request Information
Unit of Measure
Items
Item Image - SER10

SER Series Loadbinder Jacks
Price $1,214.91
Item Image - SER20

SER Series Loadbinder Jacks
Price $1,361.77

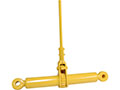

Item Image - SER30

SER Series Loadbinder Jacks
Price $1,558.69
Item Image - SER40

SER Series Loadbinder Jacks
Price $1,865.76
Travel Length N/A 14 inches N/A 20 inches N/A 26 inches N/A 38 inches
Screw Diameter N/A 2 inches
Dimension A - Eye to Eye Minimum N/A 23 inches N/A 29 inches N/A 35 inches N/A 47 inches
Dimension B - Eye to Eye Maximum N/A 37 inches N/A 49 inches N/A 61 inches N/A 85 inches
Dimension C - Barrel Length N/A 18 inches N/A 24 inches N/A 30 inches N/A 42 inches
Dimension D - Left / Right Screw Length N/A 11 inches N/A 14 inches N/A 17 inches N/A 23 inches
Dimension E - Left / Right Screw Eye Thickness N/A 1.87 inches
Dimension F - Ratchet Socket Length N/A 0.75 inches
Dimension H - Radius N/A 1.75 inches
Dimension I - Pipe Barrel Outside Diameter N/A 3.5 inches
Weight N/A 57 lbs. N/A 66 lbs. N/A 74 lbs. N/A 92 lbs.
