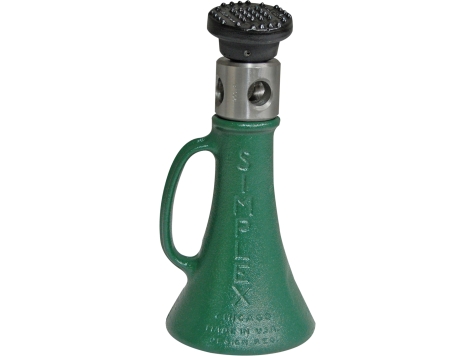

Screw Jacks are suitable for house movers, leveling, supporting, shop and factory maintenance, riggers, locomotive repairs, drillers and farm applications. Malleable housings are lighter and unbreakable. A hardened, large chrome-moly ball floating cap centers the load automatically and reduces friction by 88%. The steel cap is constructed of corrugated, drop-forged steel with a self-leveling 9 degree float.
- 9 Models.
- Ductile iron bodies for strength.
- Positive stop for safety.
- Supports loads indefinitely and won't creep down.
- Serrated load cap.
Steel lever bars sold separately
Unit of Measure
Sustaining Capacity |
N/A 12 tons |
Closed Height |
N/A 9.63 inches |
Stroke |
N/A 3.75 inches |
Base Diameter |
N/A 4.75 inches |
Cap Diameter |
N/A 2.88 inches |
Handle Effort Per Ton |
N/A 15 lbs. |
Weight |
N/A 10 lbs. |
Steel Lever Bar Model Number |
N/A SLB24 |
Steel Lever Bar Length |
N/A 24 inches |
Steel Lever Bar Diameter |
N/A 3/4 inches |
Steel Lever Bar Weight |
N/A 4 lbs. |
