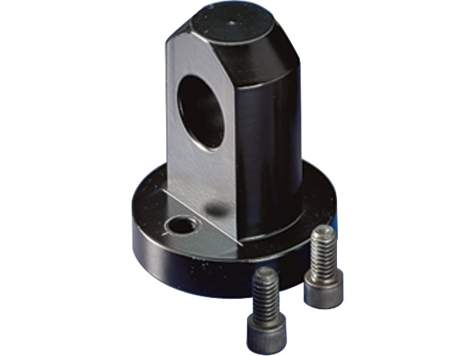

- Mounting screws are included.
- Pin to Pin– REB and REP Clevises fitted. Add cylinder stroke length.
Unit of Measure
For Use With Cylinder Capacity |
N/A 15 tons |
Clevis Eye Dimension A |
N/A 3.00 inches |
Clevis Eye Dimension B |
N/A 2.63 inches |
Clevis Eye Dimension C |
N/A 1.00 inches |
Clevis Eye Dimension D |
N/A 0.88 inches |
Clevis Eye Dimension E |
N/A 1.00 inches |
Clevis Eye Dimension F |
N/A 1.38 inches |
Pin to Pin Distance |
N/A 3.07 inches |
Ship Weight |
N/A 1.9 lbs. |
