- Applicable Except RC-50

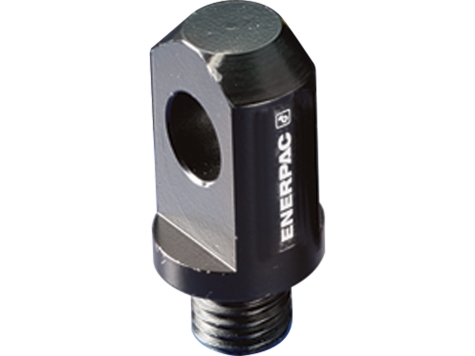

- Pin to Pin– REB and REP Clevises fitted. Add cylinder stroke length.
Unit of Measure
For Use With Cylinder Capacity |
N/A 5 tons |
Clevis Eye Dimension A |
N/A 1.13 inches |
Clevis Eye Dimension B |
N/A 1.62 inches |
Clevis Eye Dimension C |
N/A 0.56 inches |
Clevis Eye Dimension D |
N/A 0.63 inches |
Clevis Eye Dimension E |
N/A 0.63 inches |
Clevis Eye Dimension F |
N/A 0.75 inches |
Ship Weight |
N/A 0.7 lbs. |
