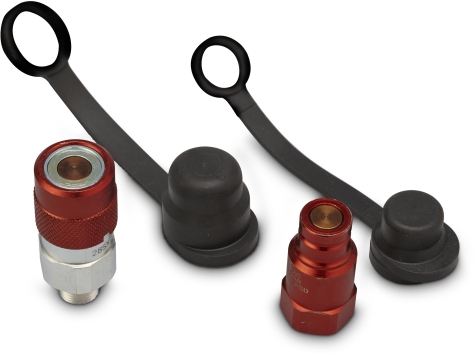

- Featuring “Push-to-connect” operation, to guarantee good connection every time
- Flush-face, zero-leak operation for minimal spillage
- HTMA* recognized for safety and performance

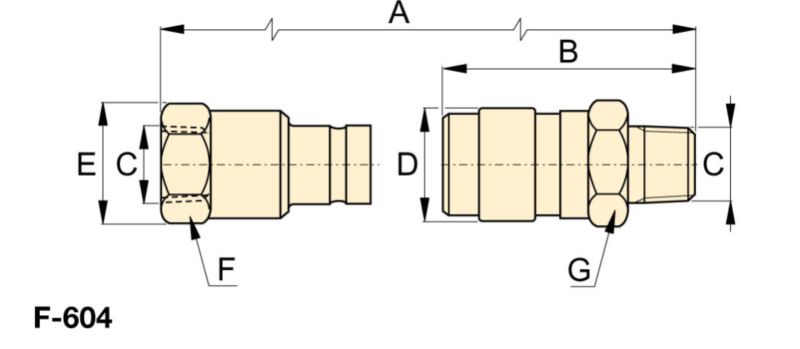

- Value A is total length when male and female halves are connected.
Unit of Measure
Model Type |
N/A Complete Set |
Maximum Operating Pressure |
N/A 10000 psi |
Max.Flow Capacity |
N/A 2500 cu. inch |
Coupler Type |
N/A Flush-Face Coupler |
Dimension A |
N/A 4.36 inches |
Dimension B |
N/A 2.85 inches |
Dimension C |
N/A 3/8" NPTF |
Dimension D |
N/A 1.23 inches |
Dimension E |
N/A 1.23 inches |
Dimension F |
N/A 1.06 inches |
Dimension G |
N/A 1.12 inches |
Ship Weight |
N/A 2 lbs. |
