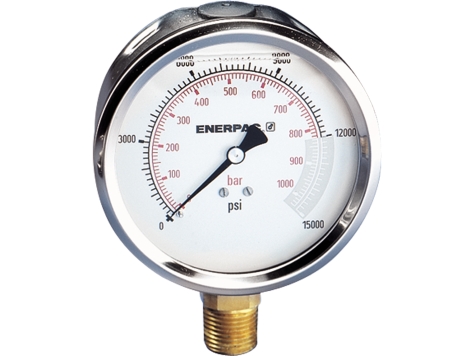

- Calibrated in dual scale reading in psi and bar
- All pressure sensing parts sealed and dampened by glycerin for long life
- Includes safety blow-out disk and pressure equaling membrane
- Gauge snobbery or needle valves recommended for high cycle applications
Unit of Measure
Gauge Series |
N/A Glycerine Filled |
Pressure Range |
N/A 0-15000 psi |
Pressure Range |
N/A 0-1000 bar |
Accuracy |
N/A ±1 % |
Face Connection Type |
N/A Lower Mount |
Face Connection A |
N/A 4.0 inches |
Face Connection B |
N/A 1.93 inches |
Face Connection C |
N/A 1/2" NPTF |
Face Connection D |
N/A 5.38 inches |
Major Grad. |
N/A 3000 psi |
Minor Grad. |
N/A 200 psi |
Major Grad. |
N/A 100 bar |
Minor Grad. |
N/A 20 bar |
Ship Weight |
N/A 3 lbs. |
