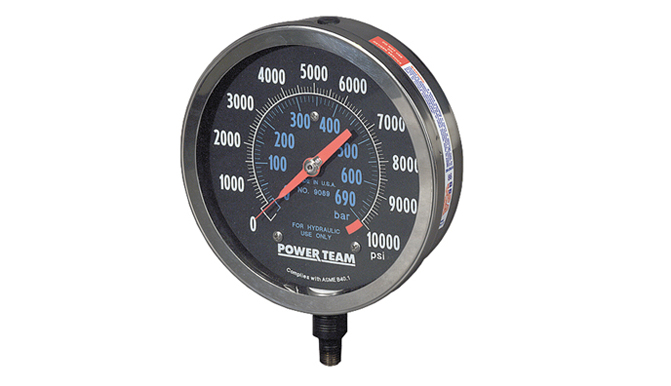

These gauges feature an easily readable and highly visible adjustable, red day-glo needle. A high strength steel bourdon tube ensures high cycle life. With stainless steel cases and lens locking rings, all 4 Inch and 6 Inch dry gauges can be filled with silicone (Kit #9046). All gauges have 1/4 Inch NPT bottom connections. Designed to meet ASME B40.1 grade B standards.
Gauges 9040-9085 are available in Europe with readings in bar. To order, add the letter “E” to the part number (example 9075E)
Gauges 9040-9085 are available in Europe with readings in bar. To order, add the letter “E” to the part number (example 9075E)
Unit of Measure
Face Diameter |
N/A 6 inches |
Pressure Range |
N/A 0-10000 psi |
Pressure Range |
N/A 0-690 bar |
Use With Cylinder Series |
N/A All |
Major Graduations |
N/A 1000 psi, 100 bar |
Minor Graduations |
N/A 200 PSI, 10 Ton |
Standard Pack Qty |
N/A 1 |
Ship Weight |
N/A 0.9 lbs. |
