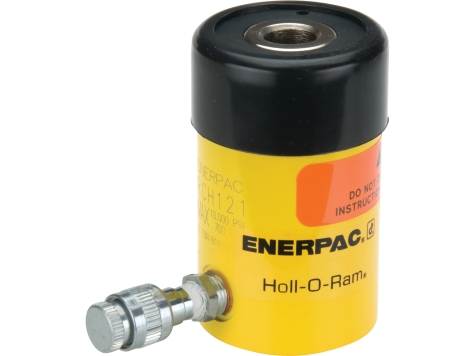

- Smooth hollow saddles are standard on all RCH-models (12 ton models are not equipped with saddles).
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
- RCH-120 includes AR-630 coupler and has 1/4 NPTF port
- RCH-121 and RCH-1211 have FZ-1630 reducer and AR-630 coupler, all other models feature CR-400 coupler
Unit of Measure
Maximum Operating Pressure |
N/A 10000 psi |
Nominal Cylinder Capacity |
N/A 12 tons |
Maximum Cylinder Capacity |
N/A 13.8 tons |
Stroke |
N/A 1.63 inches |
Cylinder Effective Area |
N/A 2.76 sq. inch |
Oil Capacity |
N/A 4.49 cu. inch |

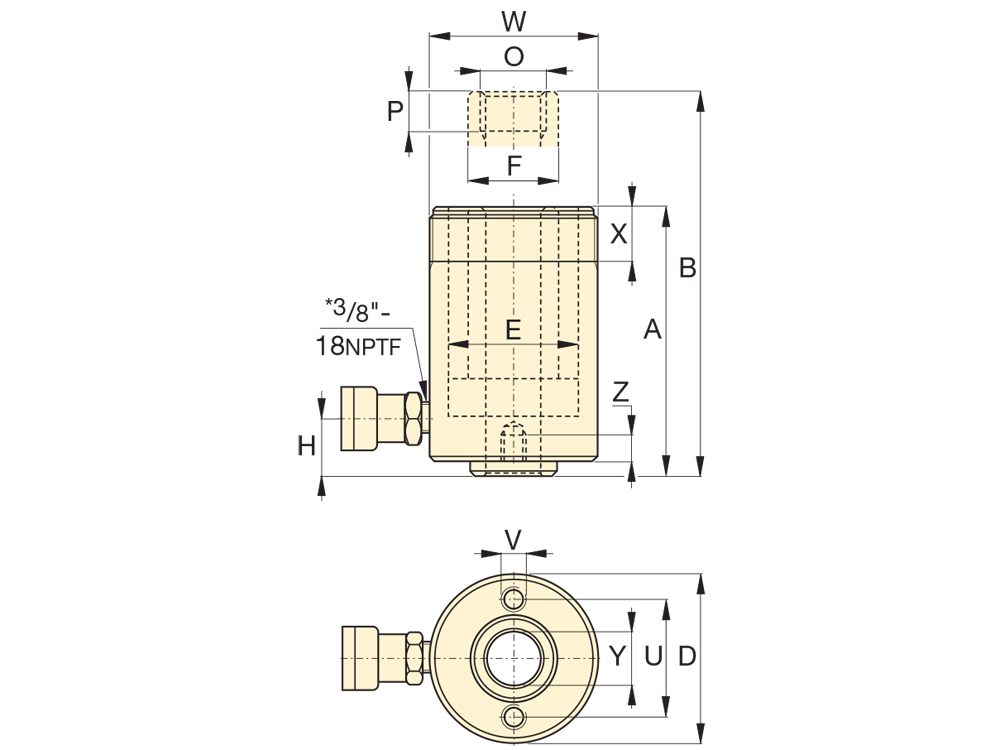

Collapsed Height - A |
N/A 4.75 inches |
Extended Height - B |
N/A 6.38 inches |
Outside Diameter - D |
N/A 2.75 inches |
Cylinder Bore Diameter - E |
N/A 2.13 inches |
Plunger Diameter - F |
N/A 1.38 inches |
Cyl. Base to Advance Port - H |
N/A 0.75 inches |
Collar Thread - W |
N/A 2 3/4 - 16 inches |
Collar Thread Length - X |
N/A 1.19 inches |
Center Hole Diameter - Y |
N/A 0.77 inches |
Weight |
N/A 6.2 lbs. |
Ship Weight |
N/A 6.2 lbs. |
