- Ideal for confined areas from 3 1/2 Inch to 11 7/16 Inch clearance.
- Bronze plated piston rods and gland nuts resist scoring and corrosion.
- Heavy duty return spring (except for double-acting models) provides fast piston return and low collapsed height.
- Coupler on 10 thru 50 ton models is angled upward 5° for added clearance.
- Grooved piston top keeps load from sliding.
- Cylinders can be "dead-ended" at full capacity.
- Removable carrying handles on 100 ton and 250 ton models.
*Note: RSS1002D is double-acting.
Unit of Measure

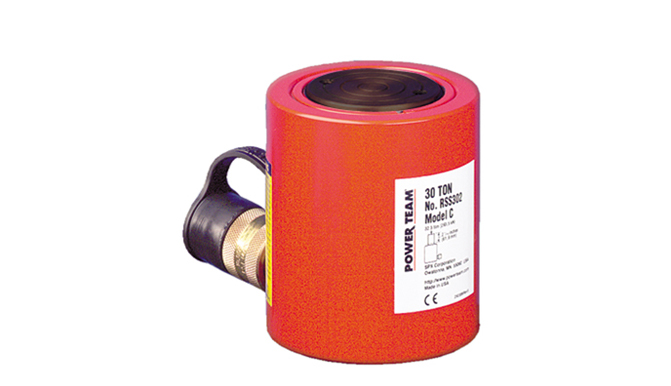

Cylinder Capacity |
N/A 30 tons |
Stroke |
N/A 2.4375 inches |
Oil Capacity - Push |
N/A 15.8 cu. inch |
Retracted Height - A |
N/A 4 5/8 inches |
Extended Height - B |
N/A 7 1/16 inches |
Outside Diameter - C |
N/A 4 inches |
Base to Port - F |
N/A 5/8 inches |
Piston Rod Diameter - H |
N/A 2 1/2 inches |
Bore Diameter |
N/A 2 7/8 inches |
Cylinder Effective Area - Push |
N/A 6.49 sq. inch |
Internal Pressure at Cap. - Push |
N/A 9243 psi |
Tons at 10000 psi - Push |
N/A 32.5 |
Product Weight |
N/A 14.7 lbs. |
Ship Weight |
N/A 15.1 lbs. |
Standard Pack Qty |
N/A 1 |
