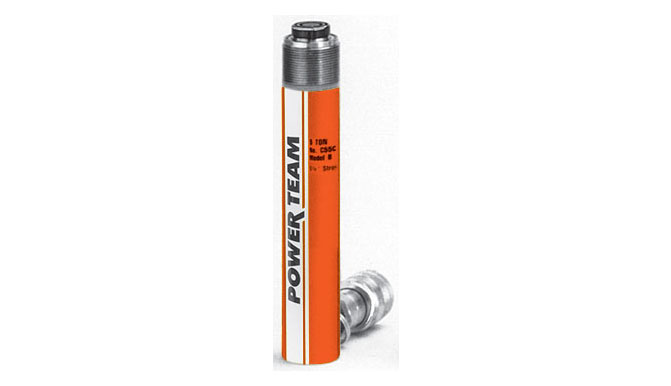

- Rugged, high quality cylinder used for fittings and pressing
- Aluminum bronze bearing reduces wear caused by off-center loads.
- Maximum sized springs speed piston return and increase spring life.
- Solid steel cylinder body for durability.
- Chrome plated piston rod resists wear and corrosion.
- Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base.
- Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders.
- A 3/8 Inch NPTF female half coupler is standard.
Unit of Measure
Cylinder Capacity |
N/A 5 tons |
Stroke |
N/A 5.25 inches |
Oil Capacity |
N/A 5.2 cu. inch |
Retracted Height - A |
N/A 8 1/2 inches |
Extended Height - B |
N/A 13 3/4 inches |
Outside Diameter - C |
N/A 1 1/2 inches |
Collar Thread - D |
N/A 1 1/2 - 16 inches |
Piston Collar Thread Length - E |
N/A 1 1/8 inches |
Base to Port - F |
N/A 3/4 inches |
Piston Rod Diameter - H |
N/A 1 inches |
Piston Rod Int. Thread and Depth - J |
N/A 3/4"- 16 x 5/8 inches |
Piston Rod Protrusion - K |
N/A 1/4 inches |
Bore Diameter |
N/A 1 1/8 inches |
Cylinder Effective Area |
N/A .994 sq. inch |
Internal Pressure at Cap. |
N/A 10061 psi |
Tons at 10000 psi |
N/A 4.97 |
Product Weight |
N/A 4 lbs. |
Ship Weight |
N/A 4.5 lbs. |
Standard Pack Qty |
N/A 1 |
