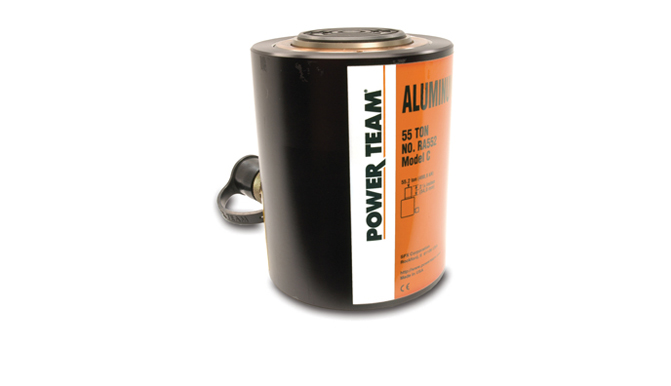

- Half the weight of equal capacity steel cylinders.
- Half the weight of steel cylinders.
- Aluminum body resists sparking in explosive environments.
- Hard coated aluminum piston rod and cylinder bore resist wear and corrosion.
- Grooved piston top helps keep the load from sliding on top of piston.
- Designed for jacking and other non- production operations.
Unit of Measure
Cylinder Capacity |
N/A 55 tons |
Stroke |
N/A 2.125 inches |
Oil Capacity |
N/A 23.50 cu. inch |

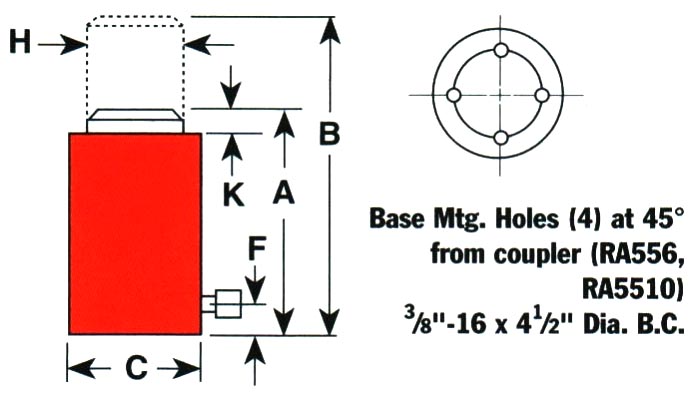

Retracted Height - A |
N/A 6 3/4 inches |
Extended Height - B |
N/A 8 7/8 inches |
Outside Diameter - C |
N/A 5 1/4 inches |
Base to Port - F |
N/A 1 3/8 inches |
Piston Rod Diameter - H |
N/A 3 1/8 inches |
Piston Rod Protrusion - K |
N/A 1/4 inches |
Bore Diameter |
N/A 3 3/4 inches |
Cylinder Effective Area |
N/A 11.04 sq. inch |
Internal Pressure at Cap. |
N/A 9960 psi |
Tons at 10000 psi |
N/A 55.2 |
Product Weight |
N/A 16.2 lbs. |
Ship Weight |
N/A 17.1 lbs. |
