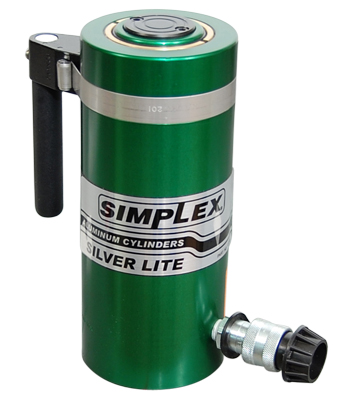

  • 13 Standard Models from 30 through 150 tons.
  • Up to 60% lighter than steel cylinders.
  • Carry handles standard on all models.
  • High flow quality couplers.
  • Large bearing surfaces for side load protection.
  • Hard anodized housing & piston reduce wear & corrosion.
  • Heavy duty spring for fast & full retraction.
  • Rod wiper protects inner cylinder from dirt.
  • Complies with ANSI/ASME B30.1 safety standards.
  • Power Pumps are suggested for these units.
Unit of Measure

Capacity

 N/A 50 tons

Stroke

 N/A 10 inches

Type

 N/A Single Acting Solid Plunger

Minimum Height - A

N/A 14.5 inches

Extended Height - B

 N/A 24.5 inches

Effect Area

 N/A 11 sq. inch

Oil Capacity Required

 N/A 110.4 cu. inch

Body O.D. - C

 N/A 5.5 inches

Piston O.D. - D

 N/A 3.12 inches

Base to Port C/L - E

 N/A 1.5 inches

Weight

 N/A 36 lbs.

N/A

    Structural movers used Simplex RAS Series lightweight cylinders to lift this historic building. Simplex lightweight cylinders were easy to carry.
