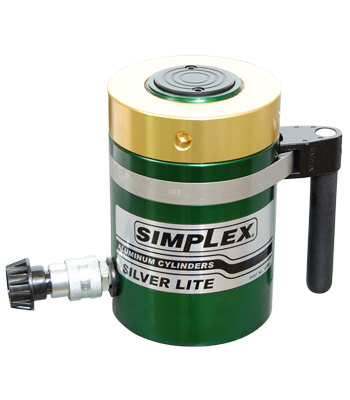

- 11 standard models from 50 through 150 tons.
- Heat treated steel load caps.
- Hard anodized housing & piston reduce wear & corrosion.
- Stop ring for piston blow-out protection.
- Heavy duty spring for fast & full retraction.
- Carry handles standard on all models.
- High flow quality couplers.
- Complies with ANSI/ASME B30.1 safety standards.
Unit of Measure
Capacity |
N/A 100 tons |
Stroke - A |
N/A 6 inches |
Minimum Height - B |
N/A 12.375 inches |
Extended Height |
N/A 18.375 inches |
Effect Area |
N/A 20.68 sq. inch |
Oil Capacity Required |
N/A 121.50 cu. inch |
Body O.D. - C |
N/A 8 inches |
Cylinder Bore Diameter - D |
N/A 5.125 inches |
Saddle Diameter - E |
N/A 3.5 inches |
Piston O.D. - F |
N/A 4.25 inches |
Base to Port C/L - G |
N/A 1.5 inches |
Weight |
N/A 64 lbs. |
Suggested Hand Pump |
N/A P140 |
