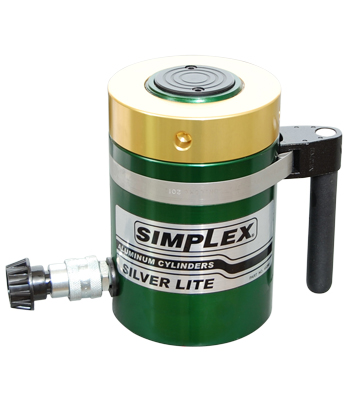

- 11 standard models from 50 through 150 tons.
- Heat treated steel load caps.
- Hard anodized housing & piston reduce wear & corrosion.
- Stop ring for piston blow-out protection.
- Heavy duty spring for fast & full retraction.
- Carry handles standard on all models.
- High flow quality couplers.
- Complies with ANSI/ASME B30.1 safety standards.
- Power Pumps are suggested for these units
Unit of Measure
Capacity |
N/A 150 tons |
Stroke - A |
N/A 10 inches |
Minimum Height - B |
N/A 16.375 inches |
Extended Height |
N/A 26.375 inches |
Effect Area |
N/A 30.68 sq. inch |
Oil Capacity Required |
N/A 303.00 cu. inch |
Body O.D. - C |
N/A 10 inches |
Cylinder Bore Diameter - D |
N/A 6.25 inches |
Saddle Diameter - E |
N/A 4.5 inches |
Piston O.D. - F |
N/A 5 inches |
Base to Port C/L - G |
N/A 1.5 inches |
Weight |
N/A 156 lbs. |
