  • 7 Models
  • Stop rings for piston blow-out protection.
  • Bronze plated domed piston resists side load.
  • Plated pistons to resist scoring & corrosion.
  • High flow quality couplers.
  • Mounting holes in 5, 10, & 20 ton models.
  • Rod wiper protects inner cylinder from dirt.
  • Exceeds ANSI/ASME B30.1 safety standards.
Unit of Measure

Capacity

 N/A 20 tons

Stroke

 N/A .44 inches

Oil Capacity Required

 N/A 1.9 cu. inch

Ram Bore Diameter

 N/A 2.38 inches

Effect Area

 N/A 4.43 sq. inch

Pressure at Capacity

 N/A 9030 psi

Minimum Height - A

N/A 2.03 inches

Extended Height - B

 N/A 2.47 inches

Body Length - C

 N/A 4 inches

Body Width - D

 N/A 3 inches

Piston O.D. - E

 N/A 1.13 inches

Base to Port C/L - F

 N/A .75 inches

Width G (inches)

 N/A 1.56

Width H (inches)

 N/A 1.93

Base Mounting Hole Dimension

 N/A 25/64" Through x 19/22" C'bore (25/64" Deep)

Weight

 N/A 6 lbs.

Suggested Hand Pump

 N/A P41 P71

N/A

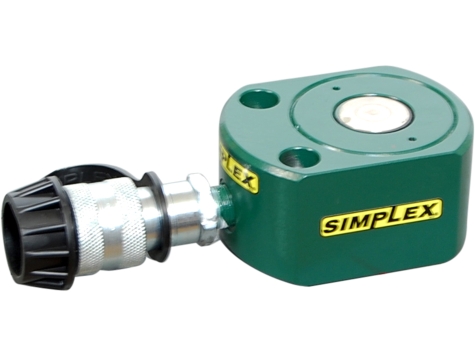

Simplex RFS Series are designed specifically for near impossible lifting, clamping or positioning jobs where space is at a premium. Ideal for break loose or start up spreading jobs. These mini-monsters pack up to 150 tons of force into a convenient, portable package.
