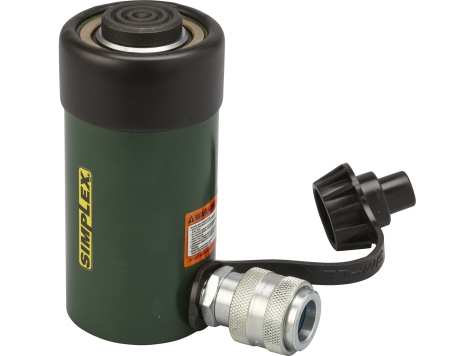

- 13 Models
- High flow quality couplers.
- Collar threads designed for full load.
- Base & piston mountings for easy fixturing.
- Removable load caps for flexibility & safety.
- Stop ring for piston blow-out protection.
- Plated piston to resist scoring & corrosion.
- Large bearings resist side load.
- Rod wiper protects inner cylinder from dirt.
Unit of Measure
Capacity |
N/A 15 tons |
Stroke |
N/A 2 inches |
Type |
N/A Single Acting Solid Plunger |

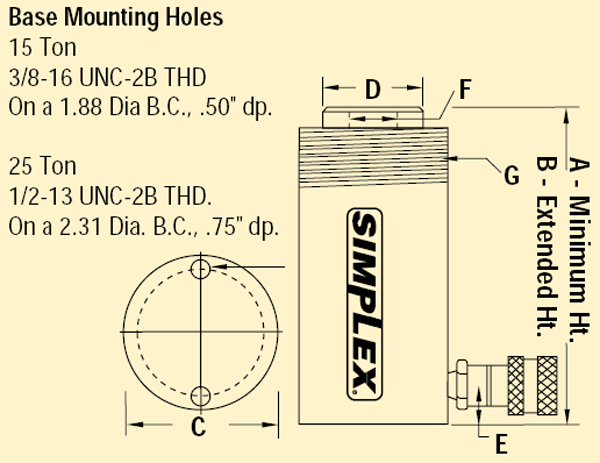

Minimum Height - A |
N/A 5 7/8 inches |
Extended Height - B |
N/A 7 7/8 inches |
Ram Bore Diameter |
N/A 2 inches |
Effect Area |
N/A 3.14 sq. inch |
Pressure at Capacity |
N/A 9554 psi |
Oil Capacity Required |
N/A 6.3 cu. inch |
Body O.D. - C |
N/A 2 3/4 inches |
Piston O.D. - D |
N/A 1 5/8 inches |
Base to Port C/L - E |
N/A 3/4 inches |
Piston I.D. Threads - F |
N/A 1 x 8 inches |
Piston Thread Depth - F |
N/A 1 inches |
Collar Threads - G |
N/A 2 3/4 x 16 inches |
Collar Thread Length -G |
N/A 1 3/16 inches |
Weight |
N/A 8.3 lbs. |
Suggested Hand Pump |
N/A P42 |
