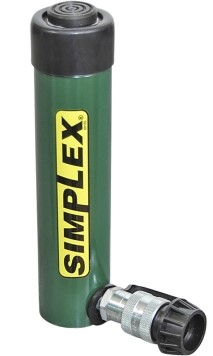

  • 14 Models
  • High flow quality couplers.
  • Collar threads designed for full load.
  • Base & piston mountings for easy fixturing.
  • Removable load caps for flexibility & safety.
  • Stop ring for piston blow-out protection.
  • Plated piston to resist scoring & corrosion.
  • Large bearings resist side load.
  • Rod wiper protects inner cylinder from dirt.
Unit of Measure

Capacity

 N/A 10 tons

Stroke

 N/A 1.00 inches

Collapsed Height

 N/A 3.5 inches

Type

 N/A Single Acting Solid Plunger

Minimum Height - A

N/A 3 17/32 inches

Extended Height - B

 N/A 4 17/32 inches

Body O.D. - C

 N/A 2 1/4 inches

Piston O.D. - D

 N/A 1 1/2 inches

Base to Port C/L - E

 N/A 3/4 inches

Collar Threads - G

 N/A 2 1/4 x 14 inches

Collar Thread Length -G

 N/A 1 1/8 inches

Ram Bore Diameter

 N/A 1 11/16 inches

Effect Area

 N/A 2.24 sq. inch

Pressure at Capacity

 N/A 8945 psi

Oil Capacity Required

 N/A 2.2 cu. inch

Suggested Hand Pump

 N/A P42

Weight

 N/A 3.5 lbs.

N/A

    Simplex spring return cylinders, used in this fabricating fixture, provide fast and accurate forming of precision metal products.
