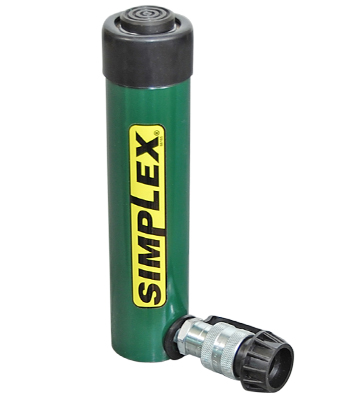

  • 14 Models
  • High flow quality couplers.
  • Collar threads designed for full load.
  • Base & piston mountings for easy fixturing.
  • Removable load caps for flexibility & safety.
  • Stop ring for piston blow-out protection.
  • Plated piston to resist scoring & corrosion.
  • Large bearings resist side load.
  • Rod wiper protects inner cylinder from dirt.
Unit of Measure

Capacity

 N/A 5 tons

Stroke

 N/A 9.125 inches

Collapsed Height

 N/A 12.83 inches

Type

 N/A Single Acting Solid Plunger

Minimum Height - A

N/A 12 3/4 inches

Extended Height - B

 N/A 21 7/8 inches

Body O.D. - C

 N/A 1 1/2 inches

Piston O.D. - D

 N/A 1 inches

Base to Port C/L - E

 N/A 3/4 inches

Piston I.D. Threads - F

 N/A 3/4 x 16 inches

Piston Thread Depth - F

 N/A 5/8 inches

Collar Threads - G

 N/A 1 1/2 x 16 inches

Collar Thread Length -G

 N/A 1 1/8 inches

Ram Bore Diameter

 N/A 1 1/8 inches

Effect Area

 N/A 0.99 sq. inch

Pressure at Capacity

 N/A 10000 psi

Oil Capacity Required

 N/A 9.1 cu. inch

Suggested Hand Pump

 N/A P42

Weight

 N/A 5.5 lbs.

N/A

    Simplex spring return cylinders, used in this fabricating fixture, provide fast and accurate forming of precision metal products.
