- 11 models with capacities ranging from 1.1 through 74.1 tons.
- Simplex air bags operate on standard shop air up to 116 psi.
- All models include 2 ply Kevlar with neoprene.
- Wide variety of safety controllers for single & nultiple bag systems.
- Light weight makes the Simplex air bags easy to set up.
- B22A through B74A bags come with side holes for attaching bags together.
Unit of Measure
Max. Working Pressure |
N/A 116 psi |
Capacity |
N/A 58.8 tons |
Stroke |
N/A 16.5 inches |

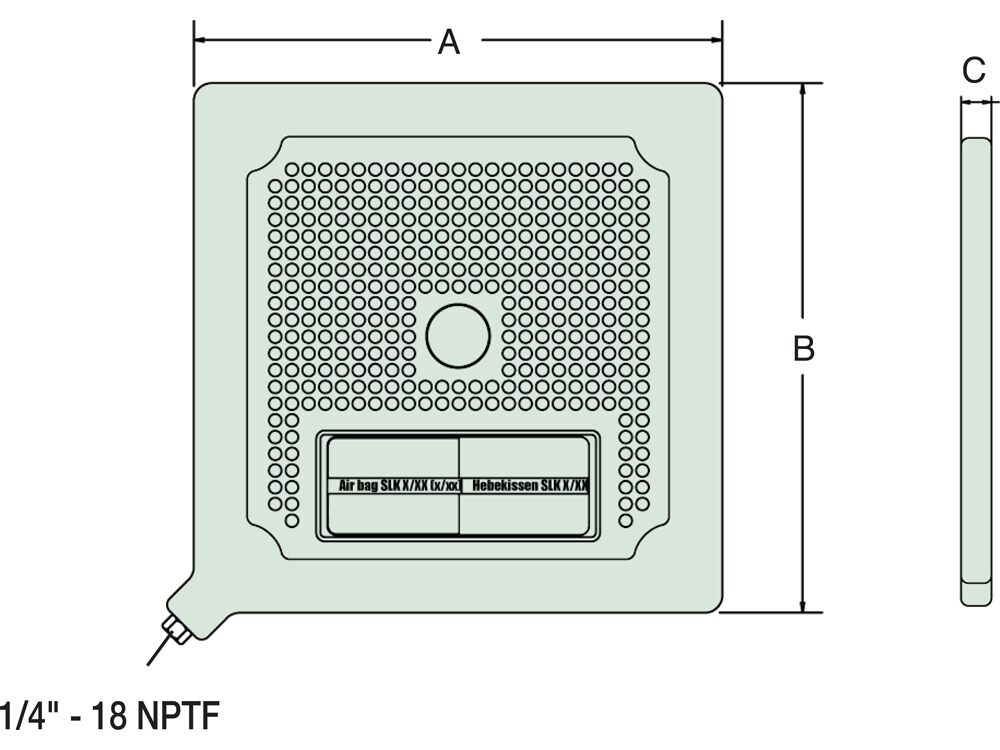

Maximum Height |
N/A 17.7 inches |
Length |
N/A 35 inches |
Width |
N/A 35 inches |
Thick (inches) |
N/A 1.2 |
Air Required @ 116 psi (cu. ft.) |
N/A 46.8 |
Maximum Burst Pressure (PSI) |
N/A 464 |
Weight |
N/A 49.6 lbs. |
