- Industrial lifting and pushing applications.

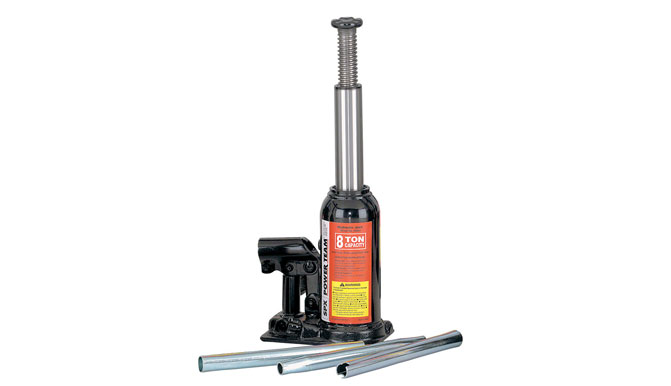

- Choose from this complete line of premium–quality, standard bottle jacks. Ideal for use in any number of industrial lifting and pushing applications.
- The 9110B, 9015B, 9022B and 9033B feature a beveled base which allows the jack to “follow” the load, reducing the chance of dangerous side loading.
- Many jacks feature screw extensions and all can be used in the vertical, angled or horizontal positions.
- Serrated or contoured saddles help stabilize the load for a safer lift.
- All jacks meet ASME B30.1 standards and carry the Power Team Marathon Lifetime Warranty.
- 110 ton jack features dual pumps for time-saving two speed operation.
Unit of Measure
Capacity |
N/A 8 tons |
Stroke |
N/A 4.75 inches |
Retracted Height Min. |
N/A 7 7/8 inches |
Length of Screw Ext. |
N/A 2 3/4 inches |
Height With Screw Ext. |
N/A 15 3/8 inches |
No. Pump Strokes to Ext. Piston |
N/A 18 inches |
Saddle Diameter |
N/A 1 1/2 inches |
Base Size |
N/A 6 inches x 3 1/2 inches |
Pump Handle Length |
N/A 23 13/16 inches |
Handle Effort at Rated Capacity |
N/A 75 lbs. |
Carry Handle |
N/A Not Available |
Product Weight |
N/A 12.1 lbs. |
Ship Weight |
N/A 13 lbs. |
Standard Pack Qty |
N/A 2 |
