- Industrial lifting and pushing applications.
- Choose from this complete line of premium–quality, standard bottle jacks. Ideal for use in any number of industrial lifting and pushing applications.
- The 9110B, 9015B, 9022B and 9033B feature a beveled base which allows the jack to “follow” the load, reducing the chance of dangerous side loading.
- Many jacks feature screw extensions and all can be used in the vertical, angled or horizontal positions.
- Serrated or contoured saddles help stabilize the load for a safer lift.
- All jacks meet ASME B30.1 standards and carry the Power Team Marathon Lifetime Warranty.

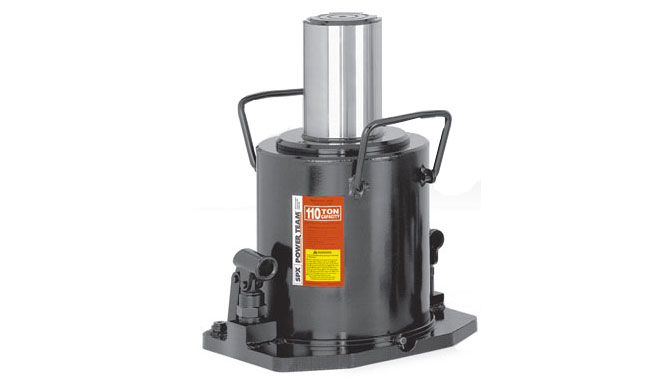

- 110 ton jack features dual pumps for time-saving two speed operation.
2 Speed: Rapid advance = 40 strokes; Lift mode = 160 strokes
Unit of Measure
Capacity |
N/A 110 tons |
Stroke |
N/A 6.125 inches |
Retracted Height Min. |
N/A 11 13/16 inches |
Height With Screw Ext. |
N/A 17 15/16 inches |
No. Pump Strokes to Ext. Piston |
N/A 40/160 inches |
Saddle Diameter |
N/A 4 3/8 inches |
Base Size |
N/A 13 3/8 inches x11 7/16 inches |
Pump Handle Length |
N/A 27 9/16 inches |
Handle Effort at Rated Capacity |
N/A 79 lbs. |
Carry Handle |
N/A Available |
Product Weight |
N/A 154.3 lbs. |
Ship Weight |
N/A 157.4 lbs. |
Standard Pack Qty |
N/A 2 |
