Just the power you need at a price you can afford.

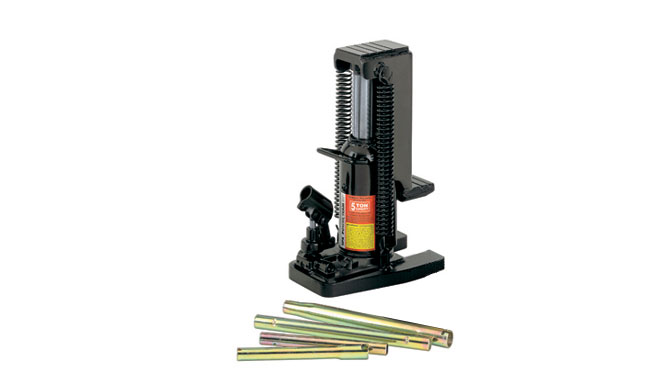

- These bottle jack-style toe jacks are loaded with many of the same features as our standard bottle jacks, but the toe-lift feature and swiveling pump handle socket make them ideal for machinery lifting and positioning.
- An internal pressure relief provides added safety by limiting the jack's lifting capability to the capacity of the toe.
- Spring return is an added feature on the larger jacks.
- All jacks meet ASME B30.1 standards and carry the Power Team Marathon Lifetime Warranty.
- Swiveling pump handle assembly available on the 5- and 10-ton models. The swiveling jack assembly allows you to access and pump the unit from numerous positions.
Unit of Measure
Capacity |
N/A 5 tons |

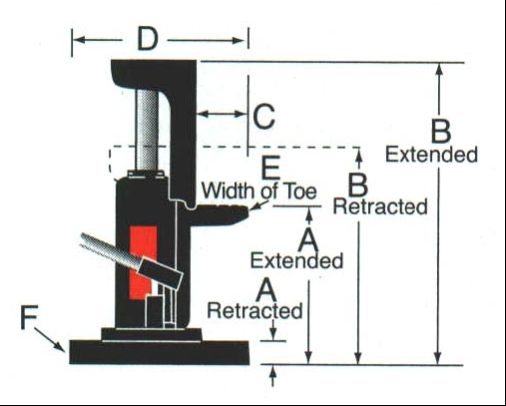

Dimension A - Ret. |
N/A 1 inches |
Dimension A - Ext. |
N/A 5 7/8 inches |
Dimension B - Ret. |
N/A 11 1/2 inches |
Dimension B - Ext. |
N/A 16 3/8 inches |
Dimension C |
N/A 1 7/8 inches |
Dimension D |
N/A 10 1/8 inches |
Dimension E |
N/A 3 inches |
Dimension F |
N/A 7 1/4 inches |
Max. Lift Stroke |
N/A 4 7/8 |
Stroke to Extemded Piston 1 inch |
N/A 22 |
Handle Effort at Max. Load |
N/A 60 lbs. |
Carry Handle |
N/A Available |
Product Weight |
N/A 53 lbs. |
Ship Weight |
N/A 54 lbs. |
Standard Pack Qty |
N/A 1 |
