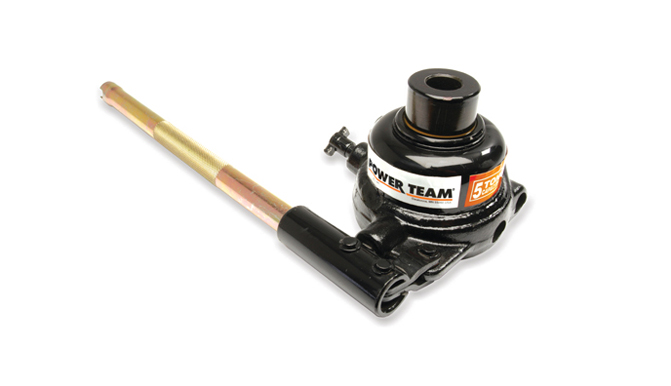

Compact Sidewinder Mini Jack fits in your palm and delivers 5, 10 and 20 tons of lifting force.
- Retracted height of just 2 9/16" for the smallest jack and 5 1/8" for the 20 ton, allows you to slip this jack into the narrowest of crevices.
- Jacks operate either horizontally or vertically. Handles function in line with base for easier use in confined spaces.

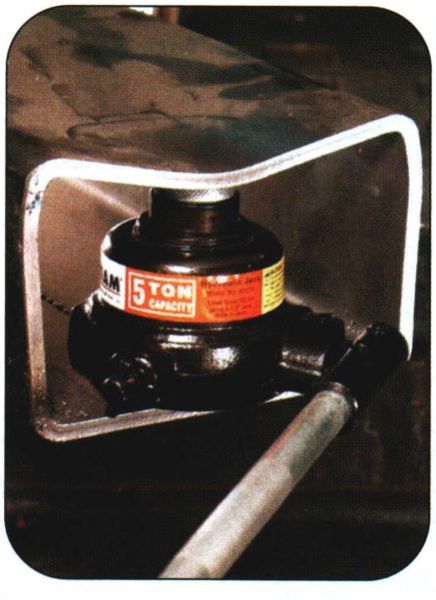

- The perfect addition to any toolbox, this remarkable little jack has multiple uses that are limited only by your imagination. Use it as a jack or a spreader. Use it to turn your mechanical gear puller (puller capacity must match jack capacity) into a hydraulic puller. Use it vertically or horizontally in limited clearance.
Unit of Measure
Capacity |
N/A 5 tons |
Stroke |
N/A 1.5 inches |
Maximum Height |
N/A 5 1/8 inches |
Retracted Height Min. |
N/A 3 1/2 inches |
No. Pump Strokes to Ext. Piston |
N/A 38 inches |
Saddle Diameter |
N/A 1 9/64 inches |
Base Diameter Size |
N/A 2.90625 inches |
Pump Handle Length |
N/A 9 7/16 inches |
Handle Effort at Rated Capacity |
N/A 57 lbs. |
Carry Handle |
N/A Not Available |
Product Weight |
N/A 5.3 lbs. |
Ship Weight |
N/A 6 lbs. |
Standard Pack Qty |
N/A 2 |
