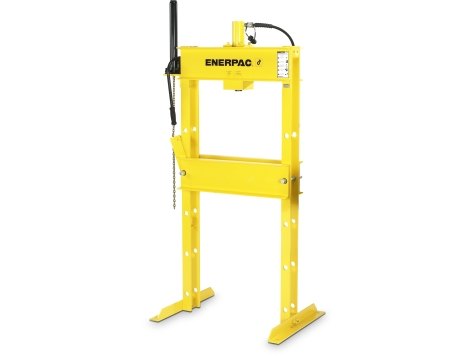

- Quality welded frame for maximum strength and long life
- Exclusive “Hydra-Lift” bed for effortless adjustment of the vertical daylight (10 ton models are manual)
- Roller head design is standard to allow movement and locking of the cylinder from side to side (10 ton, 25 ton and 30 ton are manual)
Unit of Measure
Press Capacity |
N/A 30 tons |
Cylinder Model |
N/A RR-3014 |
Pump Model No. |
N/A PAM-1042 |
Gauge Model No. |
N/A GF-835P |
Adaptor Model No. |
N/A GA-3 |
Maximum Vertical Daylight |
N/A 54.50 inches |
Maximum Bed Width |
N/A 29.00 inches |
Power Source - Type |
N/A Air |
Power Source - Valve |
N/A Man. |
Cylinder Type |
N/A Double Acting, Hydraulic Return |
Cylinder Stroke |
N/A 14 |
Rapid Speed |
N/A 0.60 sec./in |
Advance Speed |
N/A 43.00 sec./in |

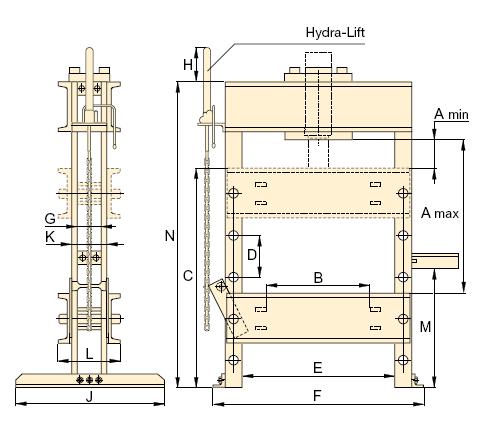

H-Frame Press Dimension A (max.) |
N/A 54.75 inches |
H-Frame Press Dimension A (min.) |
N/A 7.00 inches |
H-Frame Press Dimension C |
N/A 57.00 inches |
H-Frame Press Dimension D |
N/A 11.88 inches |
H-Frame Press Dimension E |
N/A 29.00 inches |
Ship Weight |
N/A 684 lbs. |
