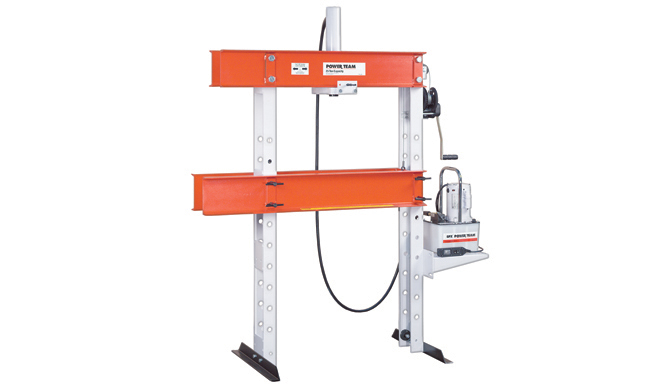

• Design permits use as both “H” frame and “C” frame press; hydraulic cylinder can be mounted on frame extensions to handle jobs which won't fit between uprights.
• Open throat press models are also available with remote control to enable the operator to view work from all sides with finger tip control of cylinder piston travel.
• Moveable work head for off-center pressing loads of full capacity can be applied across entire width of frame.
• Press bed height easily adjustable with winch's bed will not drop when handle is released.
• Choice of power sources for rapid cylinder advance: two-speed hydraulic hand pump, electric/hydraulic or air/hydraulic.
• Pump Electrical Specifications

PE17 Series – 1/2 hp, 115 volt, 60 cycle, single phase.
PE21 Series – 1 hp, 115 volt, 60 cycle, single phase.

Typical performance based on 100 psi and 10000 psi pump specifications. Actual speeds may vary under operating conditions.
Holds pressure with motor shut off. Also has an automatic dump setting. Furnished with a 10' remote motor control.
