- Industrial grade, single acting, spring return design.
- Punches .50" hole through mild steel.
- Round, square & oblong punch & die sets available.
- Uses competitive interchangeable punches & dies.
- Mounting holes for production punching.
- 10% lighter than other portable punches.
- Punch mounted motor control for safety.
- Ergonomic two handle design provides better balance and control.
- All models come equipped with a heavy duty steel case, provding tool and die organization along withease of transport.
Unit of Measure
Punch |
N/A SPH35A |
Punch and Die Set |
N/A DS-44 DS-56 DS-69 DS-81 |

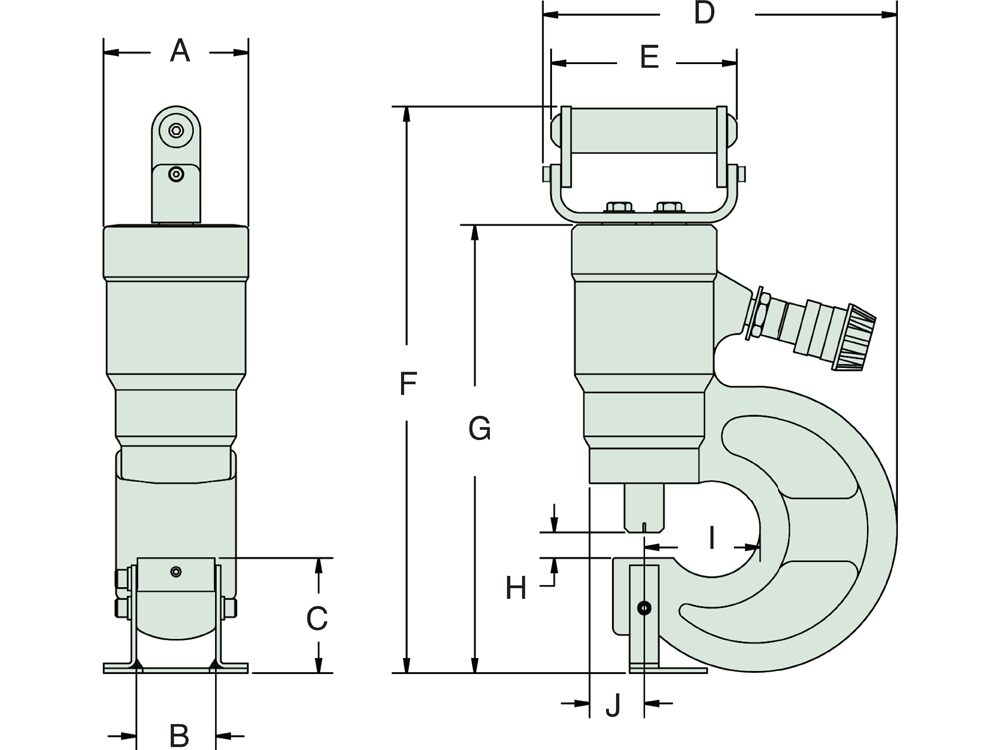

Dimension A |
N/A 3.75 inches |
Dimension B |
N/A 2.06 inches |
Dimension C |
N/A 2.97 inches |
Dimension D |
N/A 9.16 inches |
Dimension E |
N/A 4.81 inches |
Dimension F |
N/A 14.66 inches |
Dimension G |
N/A 11.6 inches |
Dimension H |
N/A .66 inches |
Dimension I |
N/A 3 inches |
Dimension J |
N/A 1.42 inches |
Punch Weight |
N/A 32 lbs. |
