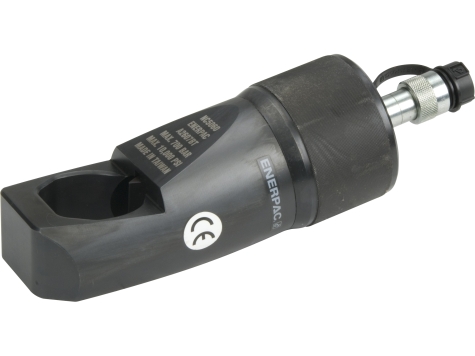

- Compact and ergonomic design, easy to use
- Unique angled head allows flush access
- Single-acting, spring return cylinder
- Heavy-duty chisels can be reground
- Applications include servicing trucks, piping industry, tank cleaning, petrochemical, steel construction and mining
- Maximum allowable hardness to split is HRc-44.
- Not to be used on square nuts.
Unit of Measure
Hexagon Nut Range |
N/A 2.38 - 2.88 inches |
Maximum Operating Pressure |
N/A 10000 psi |
Bolt Range |
N/A 1.50 - 1.88 inches |
Capacity |
N/A 90 tons |
Oil Capacity |
N/A 30.00 cu. inch |
Dimension A |
N/A 6.14 inches |
Dimension B |
N/A 14.43 inches |
Dimension C |
N/A 1.06 inches |
Dimension D |
N/A 2.95 inches |
Dimension F |
N/A 4.33 inches |
Dimension H |
N/A 7.09 inches |
Dimension J |
N/A 3.07 inches |
Replacement Chisel Model No. |
N/A NCB-6075 |
Weight |
N/A 75.1 lbs. |
Ship Weight |
N/A 94.2 lbs. |
