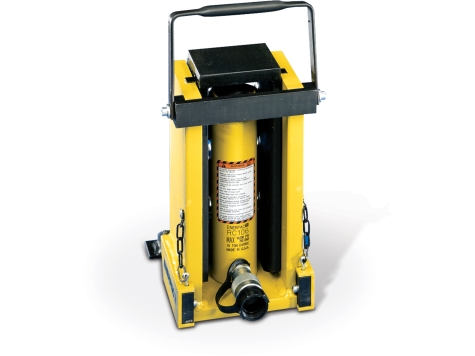

- For lifting heavy equipment with minimum available access
- Remote operation of hydraulic pump enhances safety
- Low-height lifting toe
- Precision guided to reduce friction and isolate cylinder from side-loads
- Two extendable support feet provide extra stability
- Includes RC Series cylinder with CR-400 coupler
Unit of Measure
Capacity |
N/A 8.5 tons |
Toe Clearance with Cylinder Retracted - Minimum (A1) |
N/A 0.79 inches |
Toe Clearance with Cylinder Retracted - Central (A2) |
N/A 3.74 inches |
Toe Clearance with Cylinder Retracted - Maximum (A3) |
N/A 6.69 inches |
Stroke |
N/A 5.39 inches |
Total Ext. Height - C |
N/A 17.00 inches |
Total Body Height - D |
N/A 11.61 inches |
Dimension H |
N/A 7.48 inches |
Dimension J |
N/A 8.46 inches |
Dimension K |
N/A 2.95 inches |
Weight |
N/A 59.2 lbs. |
Ship Weight |
N/A 68 lbs. |
