- Single-acting, spring return
- WR-15: For long stroke spreading applications

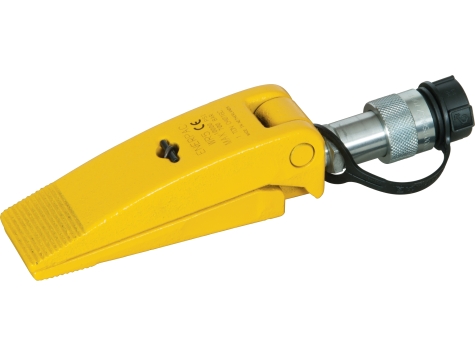

- WR-5: For use in very confined work areas
- A-92: Spreader attachment screws onto RC-Series 10 ton cylinders (except RC-101)
Unit of Measure
Spreader Capacity |
N/A 1 tons |
Tip Clearance |
N/A 0.38 inches |
Cylinder Effective Area |
N/A 1.00 sq. inch |
Oil Capacity |
N/A 0.61 cu. inch |
Maximum Operating Pressure |
N/A 10000 psi |

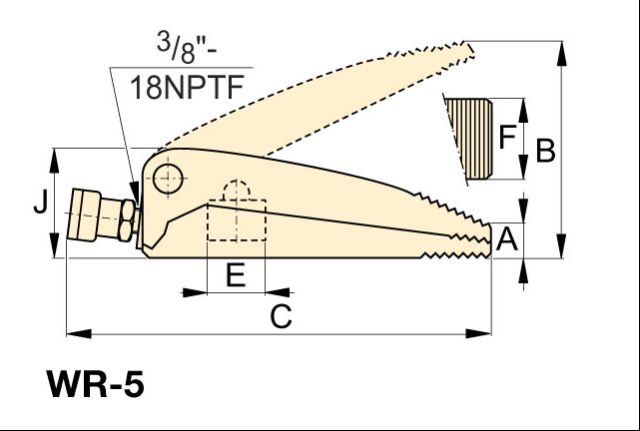

Dimension A |
N/A 0.38 inches |
Dimension B |
N/A 3.70 inches |
Dimension C |
N/A 8.78 inches |
Dimension E |
N/A 1.13 inches |
Dimension F |
N/A 2.01 inches |
Dimension J |
N/A 2.01 inches |
Weight |
N/A 5.0 lbs. |
Ship Weight |
N/A 5 lbs. |
