- Use to lift machines or as a clamp; spread concrete forms or rebar or perform straightening jobs.
- Conforms to ASME B30.1 standard.
- High strength alloy steel forged upper and lower jaws on HS2000.
- Jaws are spring-return; retract auto matically when pressure is released.

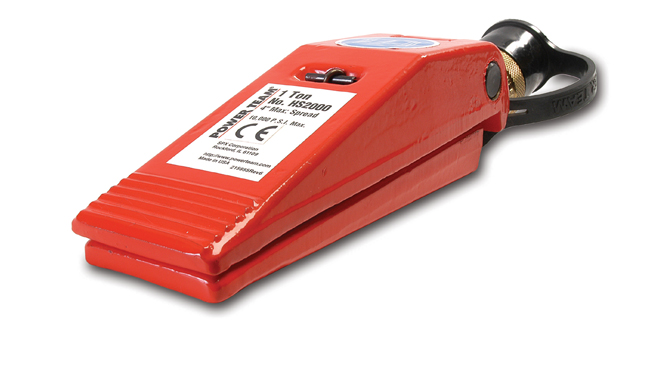

1-ton capacity spreader. Full 2,000 Ibs. capacity at 10,000 psi. with 4" spread. Can be "dead- ended" at 4" spread under full load. Needs only 9/16" clearance to engage jaws.
Unit of Measure
Capacity |
N/A 1 tons |
Max. Spread |
N/A 4 inches |

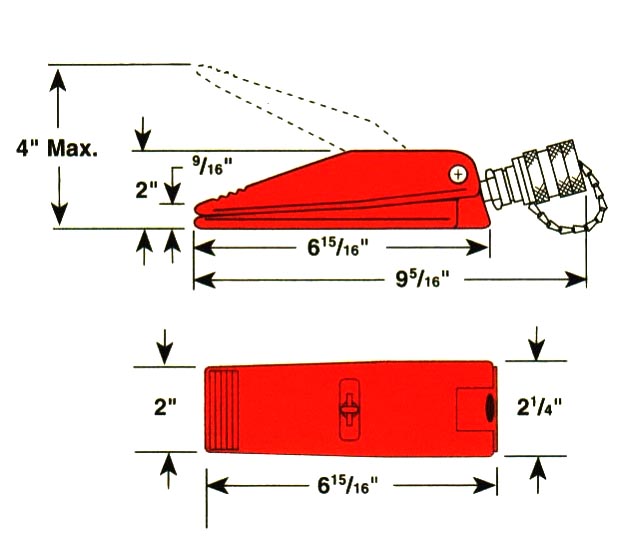

Dimension A |
N/A 4 inches |
Dimension B |
N/A 2 inches |
Dimension C |
N/A 9/16 inches |
Dimension D |
N/A 6 15/16 inches |
Dimension E |
N/A 9 5/16 inches |
Dimension F |
N/A 2 inches |
Dimension G |
N/A 6 15/16 inches |
Dimension H |
N/A 2 1/4 inches |
Oil Capacity |
N/A 0.63 cu. inch |
Min. Clearance Required |
N/A 9/16 inches |
Weight |
N/A 4.8 lbs. |
Ship Weight |
N/A 5 lbs. |
Standard Pack Qty |
N/A 1 |
