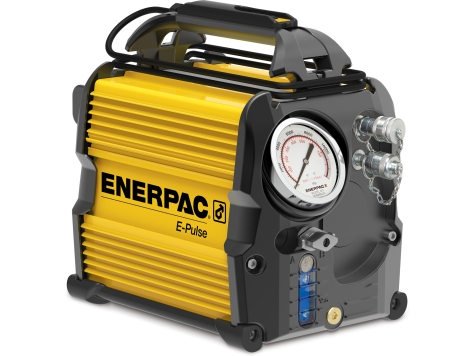

  • The E-Pulse Torque Wrench Pump, through its innovative design, is ideal for high volume fastening applications where weight is a critical factor.
  • Smart controls enable the motor to maintain constant power providing higher flow than "traditional" 0,37 kW pumps.
  • The durable aluminum housing, integrated heat exchanger and highly efficient permanent magnet motor minimize heat buildup in the toughest environments.
  • The interactive pendant provides the operator a number of usage options for optimal efficiency.
  • The E-Pulse Torque Wrench Pump is the pinnacle of bolting equipment.
  • 24V DC power regulator minimizes effects of poor power supply.
  • Six piston block design provides even flow for smooth operation of tool.
Unit of Measure

Maximum Operating Pressure

 N/A 10,000 psi

Usable Oil Capacity

 N/A 0.8 Gallon

Output Flow Rate at 14.5 psi

 N/A 220 in³/min

Output Flow Rate at 2538 psi

 N/A 130 in³/min

Output Flow Rate at 5075 psi

 N/A 58 in³/min

Output Flow Rate at 10000 psi

 N/A 32 in³/min

Number of Wrenches Pump can Operate

 N/A 1

Motor Size

 N/A 0.85 hp

Motor Voltage

 N/A 200-250 V

Valve Type

 N/A 4-Way, 2-Position

Power Source

 N/A Electric

Current Draw

 N/A 7 A

Sound Level

 N/A 70 -85 dBA

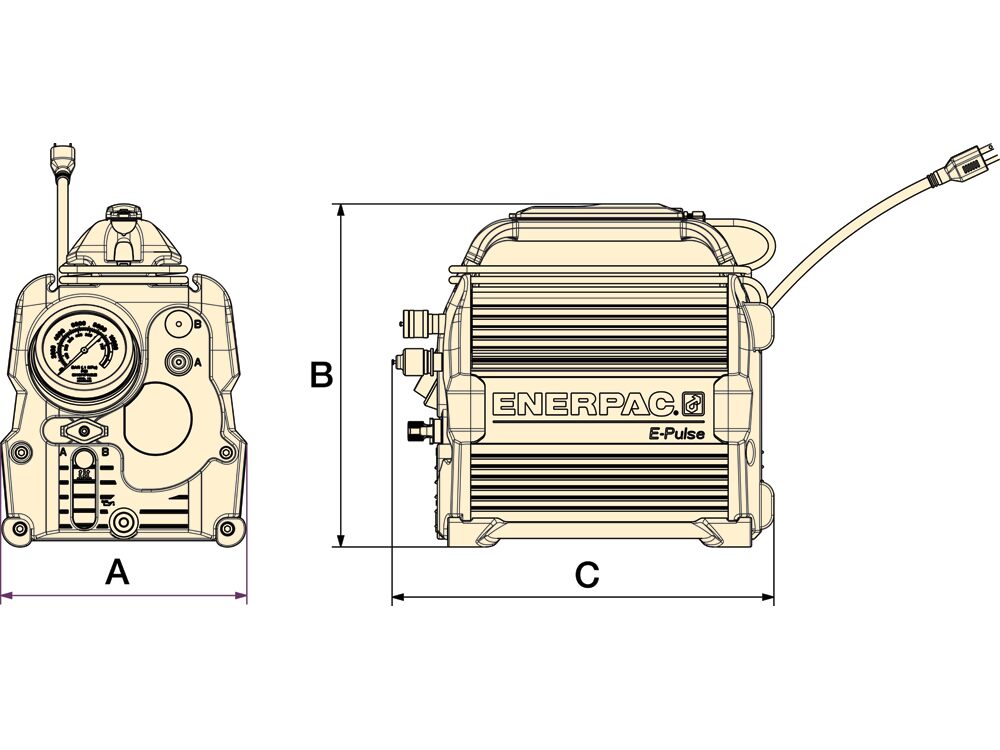

Dimension A

 N/A 10.2 inches

Dimension B

 N/A 14.2 inches

Dimension C

 N/A 15.8 inches

Weight

 N/A 44.9 lbs.
