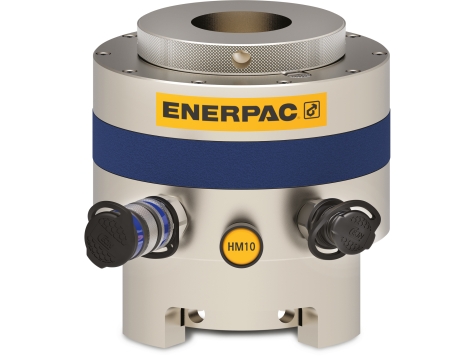

- Fifteen load cells from 3/4" to 4" & M20 to M100 - covering all standard sizes with multiple load cell options.
- Quick release bridge - faster turnaround for different applications.
- Twin ports for quick connection of multiple tools.
- High bolt-load capacity at maximum 21,750 psi (1500 bar).
- Long-stroke capability of 9/16 inch (15 mm) - reduces number of actuations.
- Stroke indicator - for operator awareness to deter tool over stroke.
- Captive socket - eliminates falling object risk.
- Interchangeable adapter kits.
- Anti-slip grip for more secure handling.
- HM01 to HM05:mechanical over-stroke prevention, no spring return.
- HM06 to HM15:relief valve for over-stroke prevention, equipped with spring return.
Unit of Measure
Maximum Operating Pressure |
N/A 21,750 psi |
Threaded Fastener Range |
N/A 3/4" - 7/8" inches |
Threaded Fastener Range |
N/A M20 - M22 mm |
Cylinder Effective Area |
N/A 1.92 in² |
Load Capacity |
N/A 20.9 tons |
Stroke |
N/A 0.59 inches |
Weight |
N/A 4.0 lbs. |
