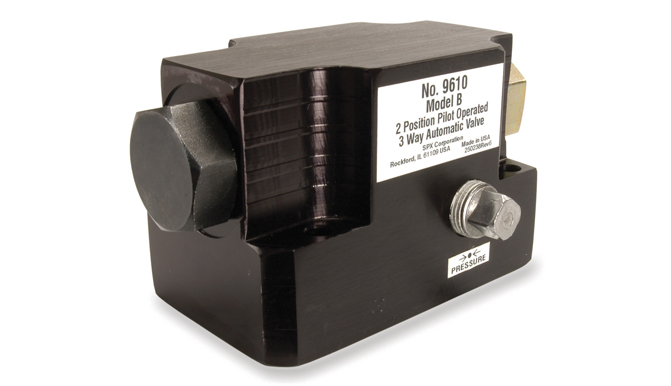

10000 psi, 3/8" ports, 5 gpm max flow rate
Application: Single-acting cylinders.
Actuation: Pilot oil.
Functions: When pump is started, pilot oil automatically closes valve and directs oil to cylinder; when pump is stopped, valve automatically opens and oil returns to reservoir.
Used on these pumps: Furnished with pilot lines and adapters for PA55, PA90, PE30, PE55, PE90 and PE120series.
Application: Single-acting cylinders.
Actuation: Pilot oil.
Functions: When pump is started, pilot oil automatically closes valve and directs oil to cylinder; when pump is stopped, valve automatically opens and oil returns to reservoir.
Used on these pumps: Furnished with pilot lines and adapters for PA55, PA90, PE30, PE55, PE90 and PE120series.
Unit of Measure

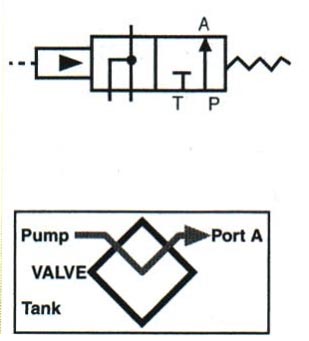

Valve Type |
N/A 3-Way, 2 Position |
Actuation |
N/A Pilot Oil |
Pressure Rating |
N/A 10000 psi |
Max. Flow Rate |
N/A 5 GPM |
Port Size |
N/A 3/8 inches |
Function |
N/A Advance Return |
Operation |
N/A Auto Pilot Operated |
Application |
N/A Single Acting Cylinder |
Used On Pumps |
N/A PE30 PE55 PE90 PE120 PA55 PA90 |
Weight |
N/A 4.2 lbs. |
Ship Weight |
N/A 4.5 lbs. |
Standard Pack Qty |
N/A 1 |
