- Compact and ergonomic design, easy to use
- Unique angled head allows flush access
- Single-acting, spring return cylinder
- Heavy-duty chisels can be reground
- Applications include servicing trucks, piping industry, tank cleaning, petrochemical, steel construction and mining
- Maximum allowable hardness to split is HRc-44.
- Not to be used on square nuts.
Unit of Measure

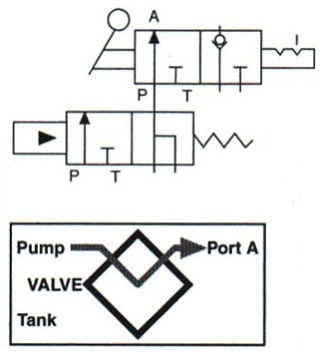

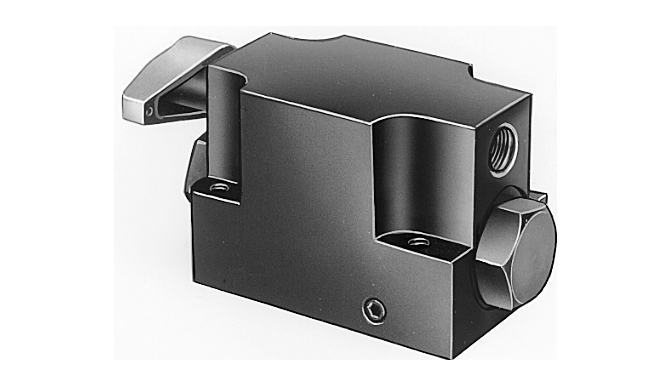

Valve Type |
N/A 2/3-Way, 2 Position |
Actuation |
N/A Flipper Lever/Pilot Oil |
Pressure Rating |
N/A 10000 psi |
Max. Flow Rate |
N/A 5 GPM |
Port Size |
N/A 3/8 inches |
Function |
N/A Advance Hold Return |
Operation |
N/A Manual |
Application |
N/A Single Acting Cylinder |
Used On Pumps |
N/A PE30 PE55 PE90 PE120 PA55 PA90 |
Weight |
N/A 4.4 lbs. |
Ship Weight |
N/A 4.7 lbs. |
Standard Pack Qty |
N/A 1 |
