Application: Precision metering for controlled cylinder piston return.

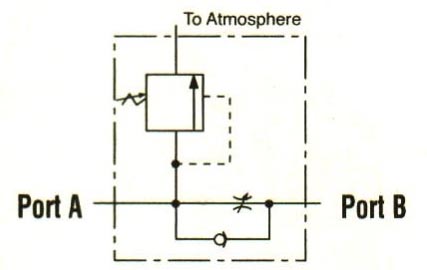

Operation: Permits free flow when extending cylinder, built-in pressure relief and “Posi-Check” locks and holds load in raised position until operator opens valve. May be pre-set to provide consistent metered return, or operator may select rate of return with each actuation. Has 3/8" NPTF ports.

NOTE: Pressure relief valve setting is 12000 psi. Operating pressure is 10000 psi and max. flow rate is 5 gpm.

Caution: To prevent sudden, uncontrolled descent of a load as it is being lowered, use a No. 9596 Load Lowering Valve or No. 9720 Counter Balance Valve in conjunction with the directional valve used in your application.
