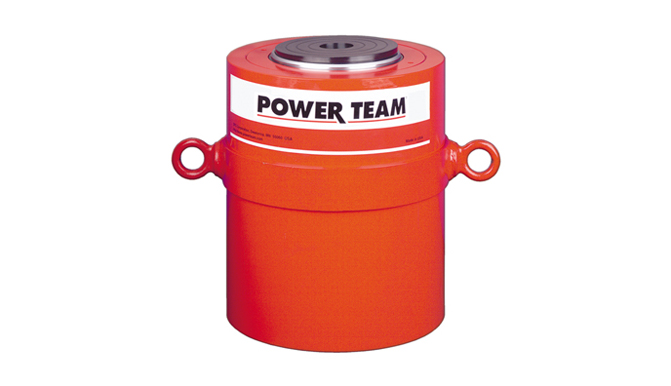

- High-tonnage, low cycle, hydraulic return
- Cylinders come standard with swivel caps to reduce the effects of off-center loading.
- Cylinders may be “dead-ended” without damage.
- Hard chrome plated, heat treated piston rod provides reduced wear on both piston and gland nut.
- Built-in safety relief valve prevents accidental over-pressurization of the retract circuit.
- Each cylinder has two 9796 3/8 Inch NPTF female half couplers.
Unit of Measure
Cylinder Capacity |
N/A 280 tons |
Stroke |
N/A 6 inches |
Oil Capacity - Push |
N/A 340.2 cu. inch |
Oil Capacity - Return |
N/A 141.6 cu. inch |
Retracted Height - A |
N/A 13 13/64 inches |
Extended Height - B |
N/A 19 13/64 inches |
Outside Diameter - C |
N/A 10 7/8 inches |
Base to Port - F |
N/A 1 7/8 inches |
Cylinder Top to Port - G |
N/A 237/64 inches |
Piston Rod Diameter - H |
N/A 6 1/2 inches |
Piston Rod Protrusion - K |
N/A 13/32 inches |
Bore Diameter |
N/A 8 1/2 inches |
Cylinder Effective Area - Push |
N/A 56.70 sq. inch |
Internal Pressure at Cap. - Push |
N/A 9870 psi |
Tons at 10000 psi - Push |
N/A 283.7 |
Product Weight |
N/A 297 lbs. |
Ship Weight |
N/A 338 lbs. |
Standard Pack Qty |
N/A 1 |
