R Series 100-565 Ton, Double-Acting, Hydraulic-Return High Tonnage Cylinders
PowerTeam Cylinders
- High-tonnage, low cycle, hydraulic return
- Cylinders come standard with swivel caps to reduce the effects of off-center loading.
- Cylinders may be “dead-ended” without damage.
- Hard chrome plated, heat treated piston rod provides reduced wear on both piston and gland nut.
- Built-in safety relief valve prevents accidental over-pressurization of the retract circuit.
- Each cylinder has two 9796 3/8 Inch NPTF female half couplers.
Item # |
Cylinder Capacity |
Stroke |
Oil Capacity - Push |
Oil Capacity - Return |
Cylinder Effective Area - Push |
Price |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|

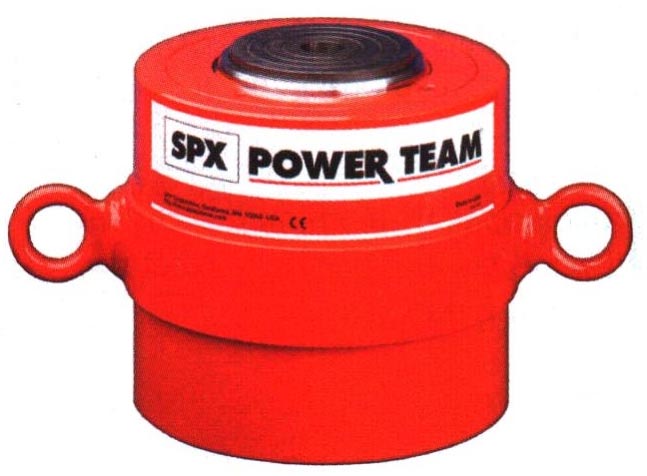

| R1002D R1002D/Asset/a0002091.jpg | Cylinder Capacity N/A 100 tons | Stroke N/A 2 inches | Oil Capacity - Push N/A 41.2 cu. inch | Oil Capacity - Return N/A 19.2 cu. inch | Cylinder Effective Area - Push N/A 20.60 sq. inch | $5,224.14 |
Add To Cart
Request Quote |
| R1006D R1006D/Asset/a0002091.jpg | Cylinder Capacity N/A 100 tons | Stroke N/A 6 inches | Oil Capacity - Push N/A 123.6 cu. inch | Oil Capacity - Return N/A 57.6 cu. inch | Cylinder Effective Area - Push N/A 20.60 sq. inch | $5,224.14 |
Add To Cart
Request Quote |
| R10010D R10010D/Asset/a0002091.jpg | Cylinder Capacity N/A 100 tons | Stroke N/A 10 inches | Oil Capacity - Push N/A 206.0 cu. inch | Oil Capacity - Return N/A 96.0 cu. inch | Cylinder Effective Area - Push N/A 20.60 sq. inch | $5,767.47 |
Add To Cart
Request Quote |
| R1502D R1502D/Asset/R1502D.jpg | Cylinder Capacity N/A 150 tons | Stroke N/A 2 inches | Oil Capacity - Push N/A 61.4 cu. inch | Oil Capacity - Return N/A 29.6 cu. inch | Cylinder Effective Area - Push N/A 30.70 sq. inch | $4,155.66 |
Add To Cart
Request Quote |
| R1506D R1506D/Asset/a0002091.jpg | Cylinder Capacity N/A 150 tons | Stroke N/A 6 inches | Oil Capacity - Push N/A 184.2 cu. inch | Oil Capacity - Return N/A 88.8 cu. inch | Cylinder Effective Area - Push N/A 30.70 sq. inch | $5,076.90 |
Add To Cart
Request Quote |
| R2002D R2002D/Asset/a0002091.jpg | Cylinder Capacity N/A 200 tons | Stroke N/A 2 inches | Oil Capacity - Push N/A 82.6 cu. inch | Oil Capacity - Return N/A 39.2 cu. inch | Cylinder Effective Area - Push N/A 41.30 sq. inch | $5,751.81 |
Add To Cart
Request Quote |
| R2006D R2006D/Asset/a0002091.jpg | Cylinder Capacity N/A 200 tons | Stroke N/A 6 inches | Oil Capacity - Push N/A 247.8 cu. inch | Oil Capacity - Return N/A 117.6 cu. inch | Cylinder Effective Area - Push N/A 41.30 sq. inch | $6,196.14 |
Add To Cart
Request Quote |
| R20010D R20010D/Asset/a0002091.jpg | Cylinder Capacity N/A 200 tons | Stroke N/A 10 inches | Oil Capacity - Push N/A 413.0 cu. inch | Oil Capacity - Return N/A 196.0 cu. inch | Cylinder Effective Area - Push N/A 41.30 sq. inch | $8,857.62 |
Add To Cart
Request Quote |
| R2802D R2802D/Asset/a0002091.jpg | Cylinder Capacity N/A 280 tons | Stroke N/A 2 inches | Oil Capacity - Push N/A 113.40 cu. inch | Oil Capacity - Return N/A 47.20 cu. inch | Cylinder Effective Area - Push N/A 56.70 sq. inch | $8,025.21 |
Add To Cart
Request Quote |
| R2806D R2806D/Asset/R2806D.jpg | Cylinder Capacity N/A 280 tons | Stroke N/A 6 inches | Oil Capacity - Push N/A 340.2 cu. inch | Oil Capacity - Return N/A 141.6 cu. inch | Cylinder Effective Area - Push N/A 56.70 sq. inch | $9,967.86 |
Add To Cart
Request Quote |
| R28010D R28010D/Asset/a0002091.jpg | Cylinder Capacity N/A 280 tons | Stroke N/A 10 inches | Oil Capacity - Push N/A 567.0 cu. inch | Oil Capacity - Return N/A 236.0 cu. inch | Cylinder Effective Area - Push N/A 56.70 sq. inch | $10,759.77 |
Add To Cart
Request Quote |
| R3552D R3552D/Asset/a0002091.jpg | Cylinder Capacity N/A 355 tons | Stroke N/A 2 inches | Oil Capacity - Push N/A 141.8 cu. inch | Oil Capacity - Return N/A 47.4 cu. inch | Cylinder Effective Area - Push N/A 70.90 sq. inch | $10,043.28 |
Add To Cart
Request Quote |
| R3556D R3556D/Asset/a0002091.jpg | Cylinder Capacity N/A 355 tons | Stroke N/A 6 inches | Oil Capacity - Push N/A 425.4 cu. inch | Oil Capacity - Return N/A 142.2 cu. inch | Cylinder Effective Area - Push N/A 70.90 sq. inch | $11,926.26 |
Add To Cart
Request Quote |
| R4302D R4302D/Asset/a0002091.jpg | Cylinder Capacity N/A 430 tons | Stroke N/A 2 inches | Oil Capacity - Push N/A 173.2 cu. inch | Oil Capacity - Return N/A 59.6 cu. inch | Cylinder Effective Area - Push N/A 86.60 sq. inch | $14,512.41 |
Add To Cart
Request Quote |
| R4306D R4306D/Asset/a0002091.jpg | Cylinder Capacity N/A 430 tons | Stroke N/A 6 inches | Oil Capacity - Push N/A 519.6 cu. inch | Oil Capacity - Return N/A 178.8 cu. inch | Cylinder Effective Area - Push N/A 86.60 sq. inch | $16,401.06 |
Add To Cart
Request Quote |
| R43010D R43010D/Asset/a0002091.jpg | Cylinder Capacity N/A 430 tons | Stroke N/A 10 inches | Oil Capacity - Push N/A 866.0 cu. inch | Oil Capacity - Return N/A 298.0 cu. inch | Cylinder Effective Area - Push N/A 86.60 sq. inch | $20,054.70 |
Add To Cart
Request Quote |
| R5652D R5652D/Asset/a0002091.jpg | Cylinder Capacity N/A 565 tons | Stroke N/A 2 inches | Oil Capacity - Push N/A 226.2 cu. inch | Oil Capacity - Return N/A 76.8 cu. inch | Cylinder Effective Area - Push N/A 113.10 sq. inch | $17,767.80 |
Add To Cart
Request Quote |
| R5656D R5656D/Asset/a0002091.jpg | Cylinder Capacity N/A 565 tons | Stroke N/A 6 inches | Oil Capacity - Push N/A 678.6 cu. inch | Oil Capacity - Return N/A 230.4 cu. inch | Cylinder Effective Area - Push N/A 113.10 sq. inch | $22,720.50 |
Add To Cart
Request Quote |
| R56510D R56510D/Asset/a0002091.jpg | Cylinder Capacity N/A 565 tons | Stroke N/A 10 inches | Oil Capacity - Push N/A 1131.0 cu. inch | Oil Capacity - Return N/A 384.0 cu. inch | Cylinder Effective Area - Push N/A 113.10 sq. inch | $26,119.08 |
Add To Cart
Request Quote |
