  • High-tonnage, low cycle, gravity return.
  • Visible indicator band alerts operator when stroke limit is reached; overflow port (“weep hole”) stroke limiter prevents piston from being inadvertently overextended.
  • Alloy heat treated piston and body for exceptional reliability and strength.
  • Plated piston rods greatly increase corrosion resistance and give superior bearing qualities.
Unit of Measure

Cylinder Capacity

 N/A 200 tons

Stroke

 N/A 2 inches

Oil Capacity

 N/A 82.6 cu. inch

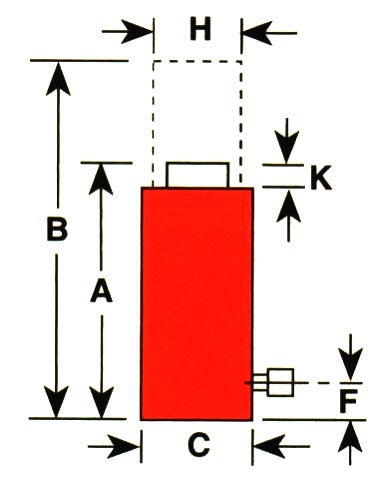

Retracted Height - A

 N/A 7 1/2 inches

Extended Height - B

 N/A 9 1/2 inches

Outside Diameter - C

 N/A 9 1/4 inches

Base to Port - F

 N/A 1 5/8 inches

Piston Rod Diameter - H

 N/A 7 1/4 inches

Piston Rod Protrusion - K

 N/A 1/8 inches

Bore Diameter

 N/A 7 1/4 inches

Cylinder Effective Area

 N/A 41.28 sq. inch

Cylinder Pressure at Cap.

 N/A 9690 psi

Tons at 10000 psi - Push

 N/A 206.4

Product Weight

 N/A 145 lbs.

Ship Weight

 N/A 157 lbs.

Standard Pack Qty

 N/A 1
