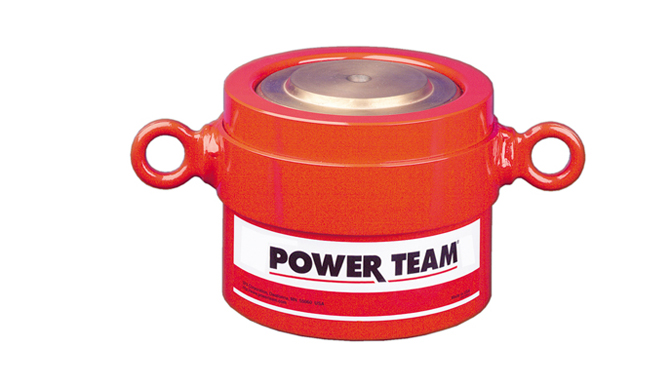

• Product Image
  • High-tonnage, low cycle, gravity return.
  • Visible indicator band alerts operator when stroke limit is reached; overflow port (“weep hole”) stroke limiter prevents piston from being inadvertently overextended.
  • Alloy heat treated piston and body for exceptional reliability and strength.
  • Plated piston rods greatly increase corrosion resistance and give superior bearing qualities.
1 - 20 of 20 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Cylinder Capacity

Stroke

Oil Capacity

Cylinder Effective Area

Cylinder Pressure at Cap.

Price

Add To Cart/Request Quote
N/A 55 tons N/A 2 inches N/A 22.1 cu. inch N/A 11.04 sq. inch N/A 9960 psi $1,600.92 Add To Cart
Request Quote
N/A 55 tons N/A 6 inches N/A 66.3 cu. inch N/A 11.04 sq. inch N/A 9960 psi $1,959.93 Add To Cart
Request Quote
N/A 55 tons N/A 10 inches N/A 110.4 cu. inch N/A 11.04 sq. inch N/A 9960 psi $2,198.25 Add To Cart
Request Quote
N/A 100 tons N/A 2 inches N/A 41.3 cu. inch N/A 20.63 sq. inch N/A 9695 psi $2,337.84 Add To Cart
Request Quote
N/A 100 tons N/A 6 inches N/A 123.8 cu. inch N/A 20.63 sq. inch N/A 9695 psi $2,688.84 Add To Cart
Request Quote
N/A 150 tons N/A 2 inches N/A 61.4 cu. inch N/A 30.68 sq. inch N/A 9778 psi $3,400.92 Add To Cart
Request Quote
N/A 150 tons N/A 6 inches N/A 184.1 cu. inch N/A 30.68 sq. inch N/A 9778 psi $4,182.66 Add To Cart
Request Quote
N/A 150 tons N/A 10 inches N/A 306.8 cu. inch N/A 30.68 sq. inch N/A 9778 psi $5,094.72 Add To Cart
Request Quote
N/A 200 tons N/A 2 inches N/A 82.6 cu. inch N/A 41.28 sq. inch N/A 9690 psi $4,091.40 Add To Cart
Request Quote
N/A 200 tons N/A 6 inches N/A 247.7 cu. inch N/A 41.28 sq. inch N/A 9690 psi $5,104.98 Add To Cart
Request Quote
N/A 280 tons N/A 2 inches N/A 113.5 cu. inch N/A 56.74 sq. inch N/A 9870 psi $5,437.98 Add To Cart
Request Quote
N/A 280 tons N/A 6 inches N/A 340.40 cu. inch N/A 56.74 sq. inch N/A 9870 psi $6,694.47 Add To Cart
Request Quote
N/A 355 tons N/A 2 inches N/A 141.8 cu. inch N/A 70.88 sq. inch N/A 10017 psi $7,836.14 Add To Cart
Request Quote
N/A 355 tons N/A 6 inches N/A 425.3 cu. inch N/A 70.88 sq. inch N/A 10017 psi $9,704.70 Add To Cart
Request Quote
N/A 355 tons N/A 10 inches N/A 708.8 cu. inch N/A 70.88 sq. inch N/A 10017 psi $11,685.51 Add To Cart
Request Quote
N/A 430 tons N/A 2 inches N/A 173.2 cu. inch N/A 86.59 sq. inch N/A 9932 psi $9,304.20 Add To Cart
Request Quote
N/A 430 tons N/A 6 inches N/A 519.5 cu. inch N/A 86.59 sq. inch N/A 9932 psi $12,317.67 Add To Cart
Request Quote
N/A 565 tons N/A 2 inches N/A 226.2 cu. inch N/A 113.10 sq. inch N/A 9991 psi $12,847.68 Add To Cart
Request Quote
N/A 565 tons N/A 6 inches N/A 678.6 cu. inch N/A 113.10 sq. inch N/A 9991 psi $17,587.89 Add To Cart
Request Quote
N/A 565 tons N/A 10 inches N/A 1131.0 cu. inch N/A 113.10 sq. inch N/A 9991 psi $20,459.79 Add To Cart
Request Quote
