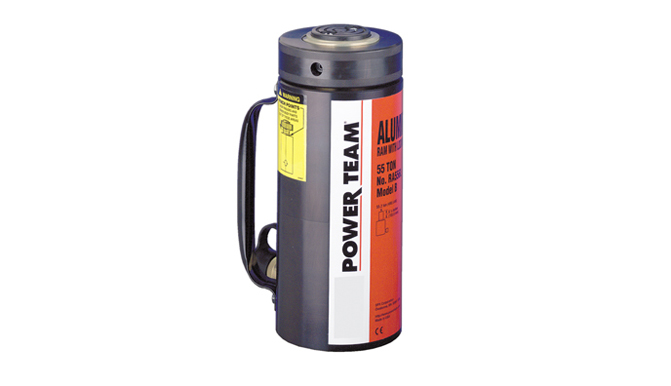

- Positive mechanical locking collar to support extended load holding.
- Supports lifted load for extended periods of time with hydraulic pressure released.
- At half the weight of steel cylinders of comparable capacity, aluminum cylinders are ideal when portability is a key factor.
- Features carrying handle.
- Complies with ANSI / ASME B30.1 Safety Standards.
Unit of Measure
Cylinder Capacity |
N/A 55 tons |
Stroke |
N/A 6.13 inches |
Oil Capacity |
N/A 67.6 cu. inch |
Retracted Height - A |
N/A 12.50 inches |
Extended Height - B |
N/A 18.63 inches |
Outside Diameter - C |
N/A 5.25 inches |
Base to Port - F |
N/A 1.38 inches |
Piston Rod Diameter - H |
N/A 3.25 inches |
Piston Rod Protrusion - K |
N/A 0.50 inches |
Nut Thickness - T |
N/A 1.50 inches |
Bore Diameter |
N/A 3.75 inches |
Cylinder Effective Area |
N/A 11.04 sq. inch |
Internal Pressure at Cap. |
N/A 9960 psi |
Tons at 10000 psi |
N/A 55.2 |
Product Weight |
N/A 29.6 lbs. |
