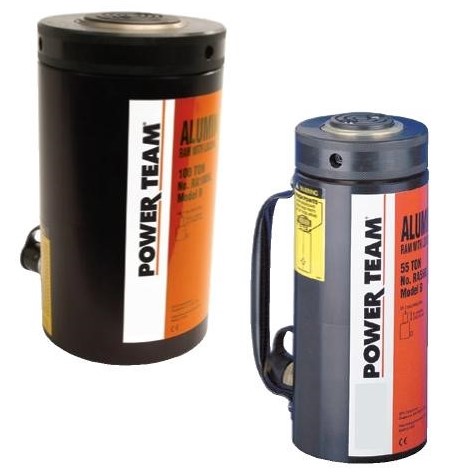

RA_L Series 55-100 Ton, Aluminum, Single-Acting, Spring Return Cylinders
PowerTeam Cylinders
- Positive mechanical locking collar to support extended load holding.
- Supports lifted load for extended periods of time with hydraulic pressure released.
- At half the weight of steel cylinders of comparable capacity, aluminum cylinders are ideal when portability is a key factor.
- Features carrying handle.
- Complies with ANSI / ASME B30.1 Safety Standards.
Item # |
Cylinder Capacity |
Stroke |
Oil Capacity |
Bore Diameter |
Cylinder Effective Area |
Internal Pressure at Cap. |
Tons at 10000 psi |
Product Weight |
Price |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| RA556L RA556L/Asset/RA556L.jpg | Cylinder Capacity N/A 55 tons | Stroke N/A 6.13 inches | Oil Capacity N/A 67.6 cu. inch | Bore Diameter N/A 3.75 inches | Cylinder Effective Area N/A 11.04 sq. inch | Internal Pressure at Cap. N/A 9960 psi | Tons at 10000 psi N/A 55.2 | Product Weight N/A 29.6 lbs. | $2,992.07 |
Add To Cart
Request Quote |
| RA1006L RA1006L/Asset/RA1006L.jpg | Cylinder Capacity N/A 100 tons | Stroke N/A 6.25 inches | Oil Capacity N/A 129 cu. inch | Bore Diameter N/A 5.13 inches | Cylinder Effective Area N/A 20.62 sq. inch | Internal Pressure at Cap. N/A 9696 psi | Tons at 10000 psi N/A 103.1 | Product Weight N/A 64 lbs. | $5,634.45 |
Add To Cart
Request Quote |
