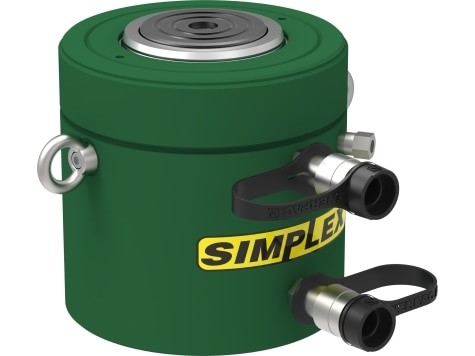

- 12 Models
- Double-Acting, hydraulic return.
- Safety valve on the retract side to prevent accidental over-pressure.
- Replaceable wear bands improve seal life and side load capacity.
- Custom strokes and capacities up to 1000 ton.
- Optional tilt saddles.
Unit of Measure
Capacity |
N/A 158 tons |
Stroke |
N/A 1.97 inches |
Oil Capacity Required |
N/A 61.35 cu. inch |
Cylinder Effective Area |
N/A 31.16 sq. inch |
Weight |
N/A 118 lbs. |
Collapsed Height - A |
N/A 8.39 inches |
Extended Height - B |
N/A 10.35 inches |
Outside Diameter - D |
N/A 8.27 inches |
Cylinder Bore Diameter - E |
N/A 6.30 inches |
Plunger Diameter - F |
N/A 4.33 inches |
Base to Adv. Port - H |
N/A 1.57 Inch |
Top to Retract Port - H1 |
N/A 2.56 Inch |
Saddle Protrusion From Plunger - K |
N/A 0.24 inches |
Saddle Diameter - L |
N/A 3.70 inches |
Saddle Height - N |
N/A 0.79 inches |
