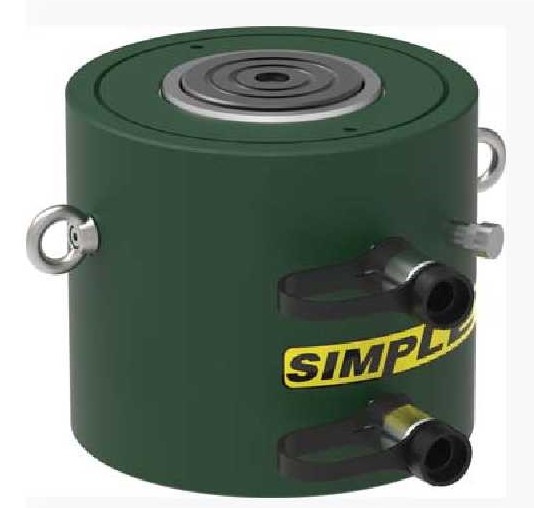

• Product Image - RCR - Series
  • 12 Models
  • Double-Acting, hydraulic return.
  • Safety valve on the retract side to prevent accidental over-pressure.
  • Replaceable wear bands improve seal life and side load capacity.
  • Custom stroke and capacities up to 1000 ton.
  • Optional tilt saddles.
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Capacity

Stroke

Oil Capacity Required

Cylinder Effective Area

Weight

Price

Add To Cart/Request Quote
N/A 55 tons N/A 1.97 inches N/A 21.63 cu. inch N/A 10.99 sq. inch N/A 42 lbs. $2,241.02 Add To Cart
Request Quote
N/A 55 tons N/A 5.91 inches N/A 64.88 cu. inch N/A 10.99 sq. inch N/A 58 lbs. $2,692.17 Add To Cart
Request Quote
N/A 55 tons N/A 11.81 inches N/A 129.76 cu. inch N/A 10.99 sq. inch N/A 84 lbs. $3,409.71 Add To Cart
Request Quote
N/A 104 tons N/A 1.97 inches N/A 40.50 cu. inch N/A 20.57 sq. inch N/A 72 lbs. $3,592.21 Add To Cart
Request Quote
N/A 104 tons N/A 5.91 inches N/A 121.50 cu. inch N/A 20.57 sq. inch N/A 102 lbs. $4,344.88 Add To Cart
Request Quote
N/A 104 tons N/A 11.81 inches N/A 242.99 cu. inch N/A 20.57 sq. inch N/A 149 lbs. $5,471.63 Add To Cart
Request Quote
N/A 158 tons N/A 1.97 inches N/A 61.35 cu. inch N/A 31.16 sq. inch N/A 118 lbs. $4,359.61 Add To Cart
Request Quote
N/A 158 tons N/A 5.91 inches N/A 184.04 cu. inch N/A 31.16 sq. inch N/A 162 lbs. $5,272.13 Add To Cart
Request Quote
N/A 158 tons N/A 11.81 inches N/A 368.09 cu. inch N/A 31.16 sq. inch N/A 230 lbs. $6,648.25 Add To Cart
Request Quote
N/A 247 tons N/A 1.97 inches N/A 95.86 cu. inch N/A 48.69 sq. inch N/A 198 lbs. $6,713.99 Add To Cart
Request Quote
N/A 247 tons N/A 5.91 inches N/A 287.57 cu. inch N/A 48.69 sq. inch N/A 265 lbs. $8,119.59 Add To Cart
Request Quote
N/A 247 tons N/A 11.81 inches N/A 575.14 cu. inch N/A 48.69 sq. inch N/A 372 lbs. $10,230.26 Add To Cart
Request Quote
