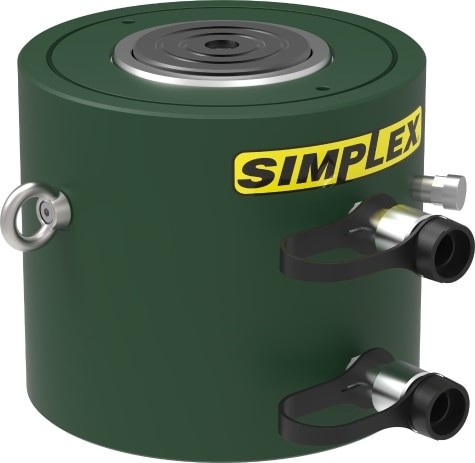

- 12 Models
- Double-Acting, hydraulic return.
- Safety valve on the retract side to prevent accidental over-pressure.
- Replaceable wear bands improve seal life and side load capacity.
- Custom strokes and capacities up to 1000 ton.
- Optional tilt saddles.
Unit of Measure
Capacity |
N/A 247 tons |
Stroke |
N/A 5.91 inches |
Oil Capacity Required |
N/A 287.57 cu. inch |
Cylinder Effective Area |
N/A 48.69 sq. inch |
Weight |
N/A 265 lbs. |

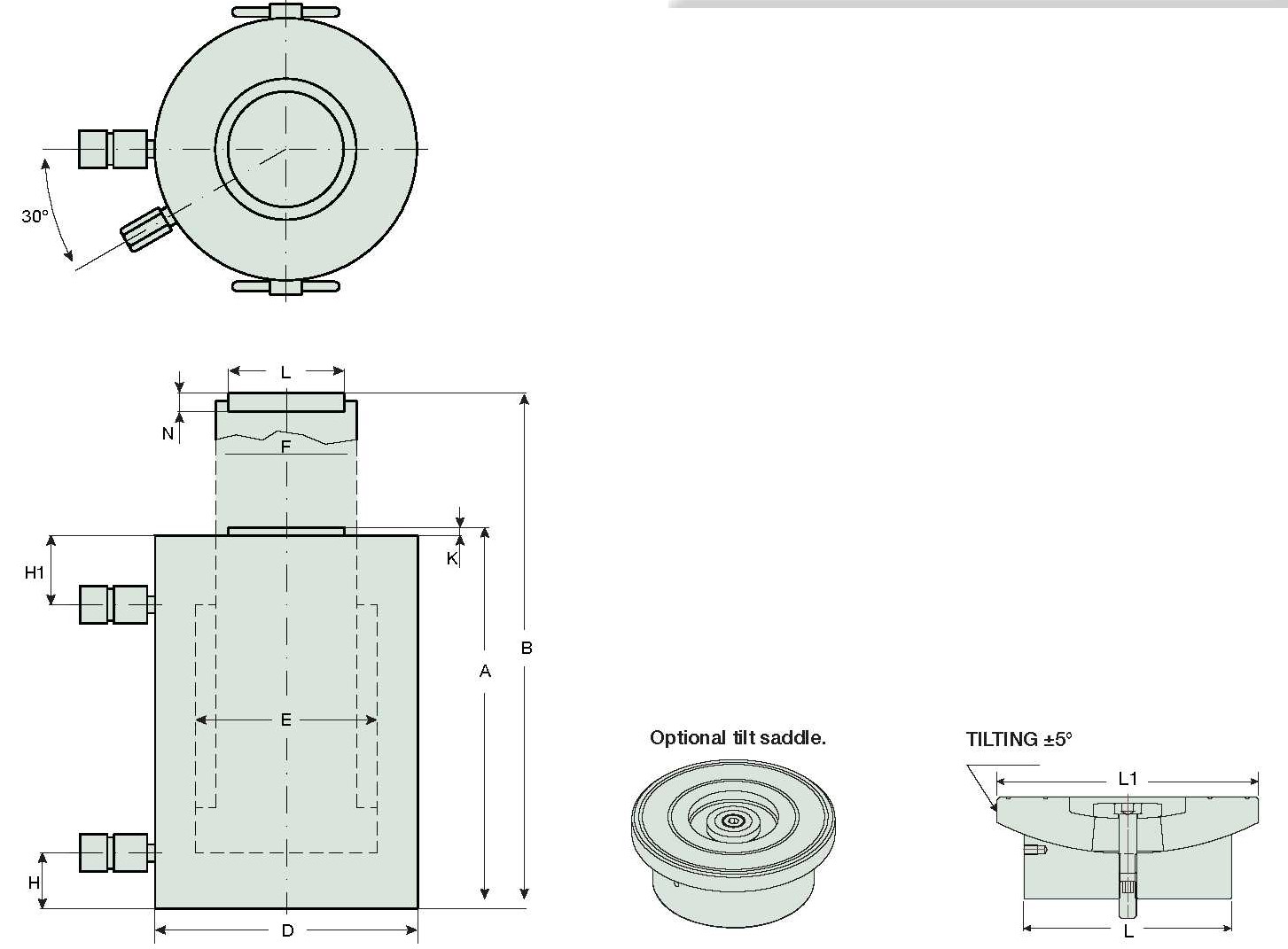

Collapsed Height - A |
N/A 13.11 inches |
Extended Height - B |
N/A 19.02 inches |
Outside Diameter - D |
N/A 10.24 inches |
Cylinder Bore Diameter - E |
N/A 7.87 inches |
Plunger Diameter - F |
N/A 5.51 inches |
Base to Adv. Port - H |
N/A 1.97 Inch |
Top to Retract Port - H1 |
N/A 2.95 Inch |
Saddle Protrusion From Plunger - K |
N/A 0.24 inches |
Saddle Diameter - L |
N/A 4.45 inches |
Saddle Height - N |
N/A 0.98 inches |
