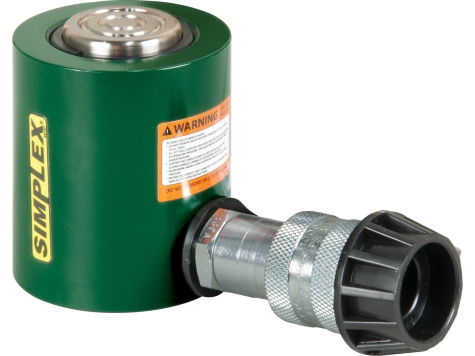

Simplex RLS Series provides the ideal fit & force required for most bridge lifting and pier cap maintenance jobs. Compact, light weight & tough as nails, Simplex cylinders are at home on any construction site.
  • 5 Models
  • Plated pistons to resist scoring & corrosion.
  • High flow quality couplers.
  • Stop rings for piston blow-out protection.
  • Rod wiper protects inner cylinder from dirt.
  • Exceeds ANSI/ASME B30.1 safety standards.
Unit of Measure

Capacity

 N/A 10 tons

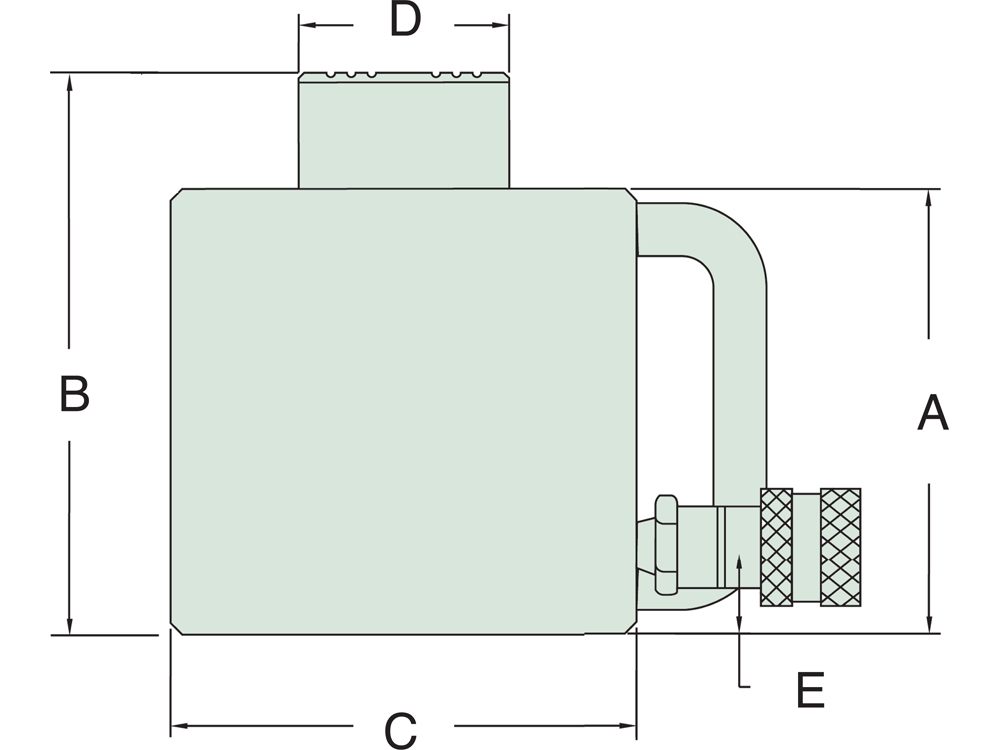

Stroke - A

 N/A 1.50 inches

Minimum Height - B

 N/A 3 15/32 inches

Extended Height - C

 N/A 4 31/32 inches

Ram Bore Diameter

 N/A 1 11/16 inches

Effect Area

 N/A 2.23 sq. inch

Pressure at Capacity

 N/A 8940 psi

Oil Capacity Required

 N/A 3.4 cu. inch

Body O.D. - D

 N/A 2 3/4 inches

Piston O.D. - E

 N/A 1 1/2 inches

Base to Port C/L - F

 N/A 11/16 inches

Weight

 N/A 5.8 lbs.

Suggested Hand Pump

 N/A P42 P72
