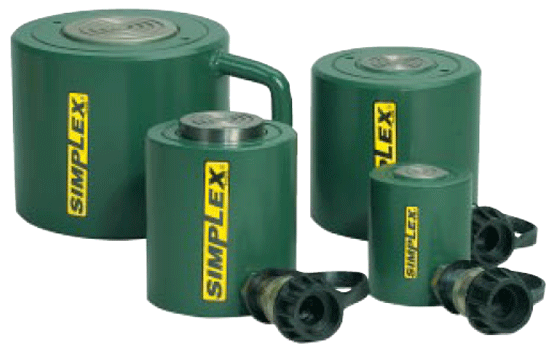

• Product Image- Spring Return Low Profile Cylinders 10 Through 100 Ton Capacities
Simplex RLS Series provides the ideal fit & force required for most bridge lifting and pier cap maintenance jobs. Compact, light weight & tough as nails, Simplex cylinders are at home on any construction site.
  • 5 Models
  • Plated pistons to resist scoring & corrosion.
  • High flow quality couplers.
  • Stop rings for piston blow-out protection.
  • Rod wiper protects inner cylinder from dirt.
  • Exceeds ANSI/ASME B30.1 safety standards.
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Capacity

Stroke - A

Ram Bore Diameter

Effect Area

Pressure at Capacity

Price

Add To Cart/Request Quote
N/A 10 tons N/A 1.50 inches N/A 1 11/16 inches N/A 2.23 sq. inch N/A 8940 psi $559.62 Add To Cart
Request Quote
N/A 20 tons N/A 1.75 inches N/A 2 3/8 inches N/A 4.43 sq. inch N/A 9030 psi $833.31 Add To Cart
Request Quote
N/A 30 tons N/A 2.4375 inches N/A 2 7/8 inches N/A 6.49 sq. inch N/A 9250 psi $935.66 Add To Cart
Request Quote
N/A 50 tons N/A 2.375 inches N/A 3 1/2 inches N/A 9.62 sq. inch N/A 10400 psi $1,152.60 Add To Cart
Request Quote
N/A 100 tons N/A 2.25 inches N/A 5 inches N/A 19.63 sq. inch N/A 10200 psi $1,684.40 Add To Cart
Request Quote
