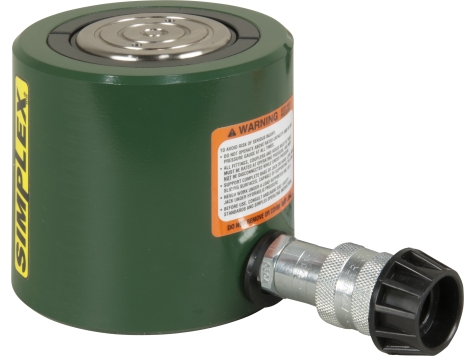

Simplex RLS Series provides the ideal fit & force required for most bridge lifting and pier cap maintenance jobs. Compact, light weight & tough as nails, Simplex cylinders are at home on any construction site.
  • 5 Models
  • Plated pistons to resist scoring & corrosion.
  • High flow quality couplers.
  • Stop rings for piston blow-out protection.
  • Rod wiper protects inner cylinder from dirt.
  • Exceeds ANSI/ASME B30.1 safety standards.
Unit of Measure

Capacity

 N/A 50 tons

Stroke - A

 N/A 2.375 inches

Minimum Height - B

 N/A 4 13/16 inches

Extended Height - C

 N/A 7 3/16 inches

Ram Bore Diameter

 N/A 3 1/2 inches

Effect Area

 N/A 9.62 sq. inch

Pressure at Capacity

 N/A 10400 psi

Oil Capacity Required

 N/A 22.8 cu. inch

Body O.D. - D

 N/A 5 inches

Piston O.D. - E

 N/A 2 1/4 inches

Base to Port C/L - F

 N/A 15/16 inches

Weight

 N/A 22.8 lbs.

Suggested Hand Pump

 N/A P42 P72
