- "Dial-in" feature on HNS150 makes adjustment of splitter simple, without the worry of damaging the bolt.
- Specially designed "tool steel" cutter blade penetrates the nut to the precise point where it cracks, stopping short of the bolt threads.
- Nut splitter features a dramatically improved cutter blade with an 800% greater resistance to chipping and breaking over previous models.
- All models feature a rugged one-piece cutting frame coupled to a heavy-duty hydraulic cylinder.
- Compact size allows you to use it in confined areas where it will deliver enough force to split the toughest "fused" or rusted-on grade 2H nuts.
- Simply split nut on one side, spin nut splitter 1/2 turn and make second cut on opposite side; nut separates into halves for easy removal.
Unit of Measure
Capacity |
N/A 15 tons25 tons |

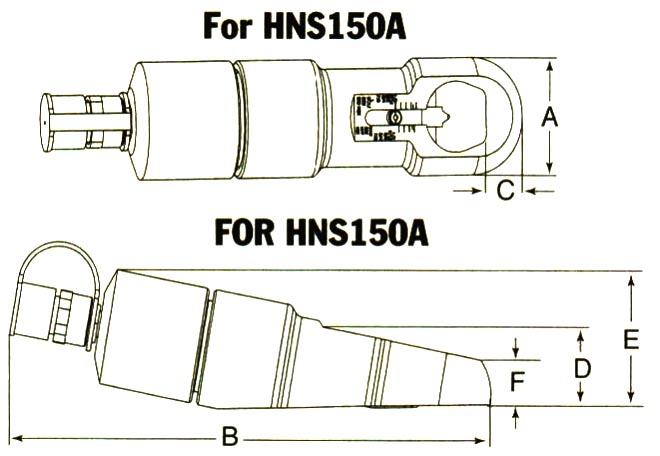

Dimension A |
N/A 3.02 inches |
Dimension B |
N/A 14.20 inches |
Dimension C |
N/A 1.03 inches |
Dimension D |
N/A 2.11 inches |
Dimension E |
N/A 3.70 inches |
Dimension F |
N/A 1.16 inches |
Head Thickness |
N/A 1 inches |
Replacement Blade |
N/A 351985 |
Tool Weight |
N/A 15.8 lbs. |
Ship Weight |
N/A 16.3 lbs. |
Standard Pack Qty |
N/A 1 |
