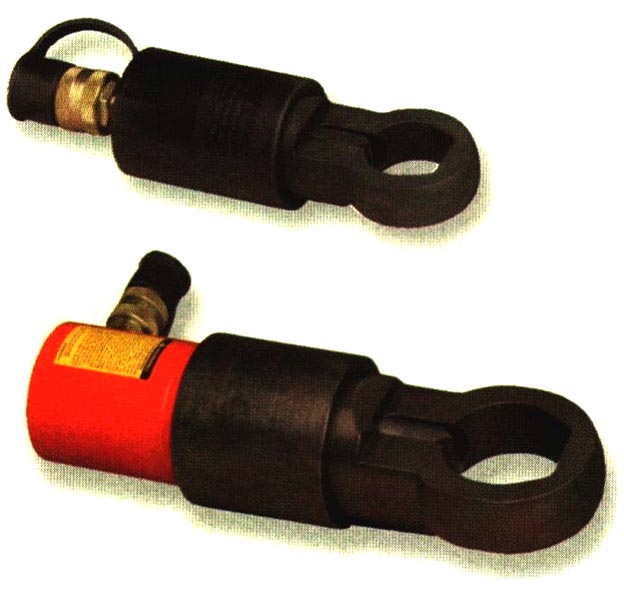

Hydraulic Nut Splitters
SPX Power Team Hydraulic Tools
- "Dial-in" feature on HNS150 makes adjustment of splitter simple, without the worry of damaging the bolt.
- Specially designed "tool steel" cutter blade penetrates the nut to the precise point where it cracks, stopping short of the bolt threads.
- Nut splitter features a dramatically improved cutter blade with an 800% greater resistance to chipping and breaking over previous models.
- All models feature a rugged one-piece cutting frame coupled to a heavy-duty hydraulic cylinder.
- Compact size allows you to use it in confined areas where it will deliver enough force to split the toughest "fused" or rusted-on grade 2H nuts.
- Simply split nut on one side, spin nut splitter 1/2 turn and make second cut on opposite side; nut separates into halves for easy removal.
Item # |
Capacity |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
Price |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|
| HNS150 HNS150/Asset/HNS150.jpg | Capacity N/A 15 tons25 tons | Dimension A N/A 2.875 inches | Dimension B N/A 3.375 inches | Dimension C N/A 7.875 inches | Dimension D N/A 2.75 inches | Quote |
Add To Cart
Request Quote |
| HNS150A HNS150A/Asset/HNS150A.jpg | Capacity N/A 15 tons25 tons | Dimension A N/A 3.02 inches | Dimension B N/A 14.20 inches | Dimension C N/A 1.03 inches | Dimension D N/A 2.11 inches | Quote |
Add To Cart
Request Quote |
| HNS225 HNS225/Asset/HNS225.jpg | Capacity N/A 15 tons25 tons | Dimension A N/A 4.25 inches | Dimension B N/A 6 inches | Dimension C N/A 14.375 inches | Dimension D N/A 3.875 inches | Quote |
Add To Cart
Request Quote |
