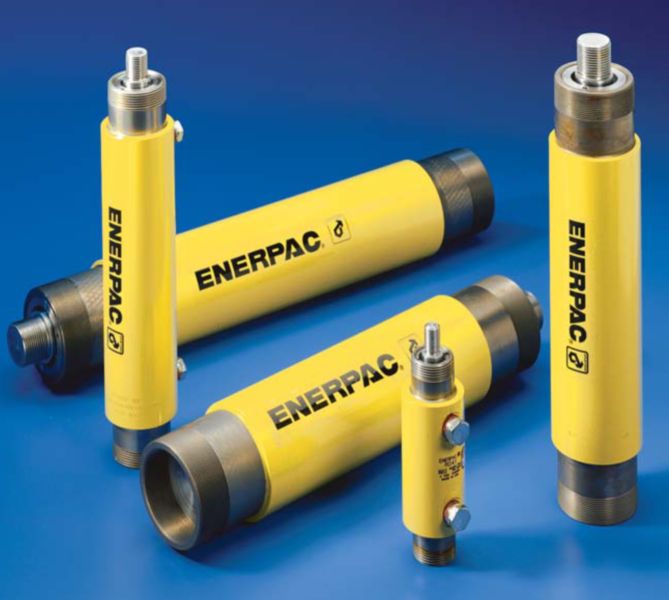

RD Series Double-Acting, Precision Production Cylinders
Enerpac Cylinders
Designed for long life, the best choice for production applications. Unique mounting configurations simplify fixturing. Baked enamel finish for increased corrosion resistance. Double-acting operation develops force in both directions, providing maximum versatility. Plunger wiper reduces contamination, extending cylinder life.
Item # |
Nominal Cylinder Capacity |
Stroke |
Advance Max. Cylinder Capacity |
Advance Cylinder Effective Area |
Outside Diameter - D |
Price |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|
| RD-41 RD-41/Asset/RD 41.jpg | Nominal Cylinder Capacity N/A 4 tons | Stroke N/A 1.13 inches | Advance Max. Cylinder Capacity N/A 4 tons | Advance Cylinder Effective Area N/A 0.79 sq. inch | Outside Diameter - D N/A 2.00 inches | $1,261.86 |
Add To Cart
Request Quote |
| RD-43 RD-43/Asset/RD 43.jpg | Nominal Cylinder Capacity N/A 4 tons | Stroke N/A 3.13 inches | Advance Max. Cylinder Capacity N/A 4 tons | Advance Cylinder Effective Area N/A 0.79 sq. inch | Outside Diameter - D N/A 2.00 inches | $1,416.15 |
Add To Cart
Request Quote |
| RD-46 RD-46/Asset/RD 46.jpg | Nominal Cylinder Capacity N/A 4 tons | Stroke N/A 6.13 inches | Advance Max. Cylinder Capacity N/A 4 tons | Advance Cylinder Effective Area N/A 0.79 sq. inch | Outside Diameter - D N/A 2.00 inches | $1,552.80 |
Add To Cart
Request Quote |
| RD-91 RD-91/Asset/RD 91.jpg | Nominal Cylinder Capacity N/A 9 tons | Stroke N/A 1.13 inches | Advance Max. Cylinder Capacity N/A 9 tons | Advance Cylinder Effective Area N/A 1.77 sq. inch | Outside Diameter - D N/A 2.50 inches | $1,863.58 |
Add To Cart
Request Quote |
| RD-93 RD-93/Asset/RD 93.jpg | Nominal Cylinder Capacity N/A 9 tons | Stroke N/A 3.13 inches | Advance Max. Cylinder Capacity N/A 9 tons | Advance Cylinder Effective Area N/A 1.77 sq. inch | Outside Diameter - D N/A 2.50 inches | $1,958.36 |
Add To Cart
Request Quote |
| RD-96 RD-96/Asset/RD 96.jpg | Nominal Cylinder Capacity N/A 9 tons | Stroke N/A 6.13 inches | Advance Max. Cylinder Capacity N/A 9 tons | Advance Cylinder Effective Area N/A 1.77 sq. inch | Outside Diameter - D N/A 2.50 inches | $2,045.42 |
Add To Cart
Request Quote |
| RD-910 RD-910/Asset/RD 910.jpg | Nominal Cylinder Capacity N/A 9 tons | Stroke N/A 10.13 inches | Advance Max. Cylinder Capacity N/A 9 tons | Advance Cylinder Effective Area N/A 1.77 sq. inch | Outside Diameter - D N/A 2.50 inches | $2,262.53 |
Add To Cart
Request Quote |
| RD-166 RD-166/Asset/RD 166.jpg | Nominal Cylinder Capacity N/A 16 tons | Stroke N/A 6.25 inches | Advance Max. Cylinder Capacity N/A 16 tons | Advance Cylinder Effective Area N/A 3.14 sq. inch | Outside Diameter - D N/A 3.00 inches | $3,074.75 |
Add To Cart
Request Quote |
| RD-1610 RD-1610/Asset/RD 1610.jpg | Nominal Cylinder Capacity N/A 16 tons | Stroke N/A 10.25 inches | Advance Max. Cylinder Capacity N/A 16 tons | Advance Cylinder Effective Area N/A 3.14 sq. inch | Outside Diameter - D N/A 3.00 inches | $3,462.67 |
Add To Cart
Request Quote |
| RD-256 RD-256/Asset/RD 256.jpg | Nominal Cylinder Capacity N/A 25 tons | Stroke N/A 6.25 inches | Advance Max. Cylinder Capacity N/A 25 tons | Advance Cylinder Effective Area N/A 4.91 sq. inch | Outside Diameter - D N/A 3.63 inches | $4,354.23 |
Add To Cart
Request Quote |
| RD-2510 RD-2510/Asset/RD 2510.jpg | Nominal Cylinder Capacity N/A 25 tons | Stroke N/A 10.25 inches | Advance Max. Cylinder Capacity N/A 25 tons | Advance Cylinder Effective Area N/A 4.91 sq. inch | Outside Diameter - D N/A 3.63 inches | $5,619.40 |
Add To Cart
Request Quote |
